Description: Switch-Steptronic
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0410 Switch-Steptronic › Description: Switch-Steptronic
ConnectorsDescription: Switch-Steptronic
| Cav 1 | Col NK | Cct 16 |
| 2 | B | ALL |
| 7 | GB | 16 |
| 8 | GK | 16 |
| 9 | LGK | ALL |
Description: Switch-Steptronic

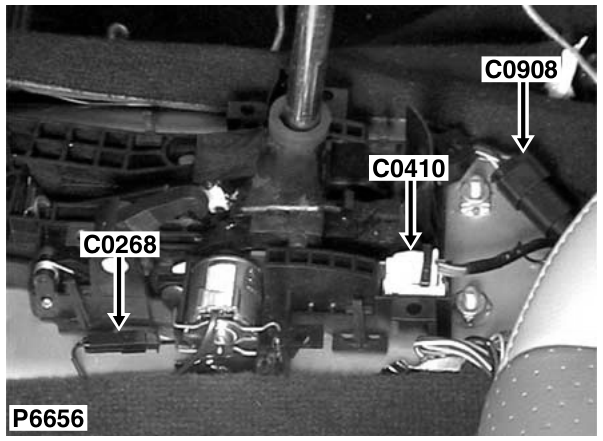

Location: Beneath centre console
Colour: BLACK Gender: Female
