Description: Lamp-Tail-RH
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0489 Lamp-Tail-RH › Description: Lamp-Tail-RH
ConnectorsDescription: Lamp-Tail-RH
| Cav 1 | Col B | Cct 18 |
| 2 | GP | 18 |
| 3 | RY | 18 |
Description: Lamp-Tail-RH

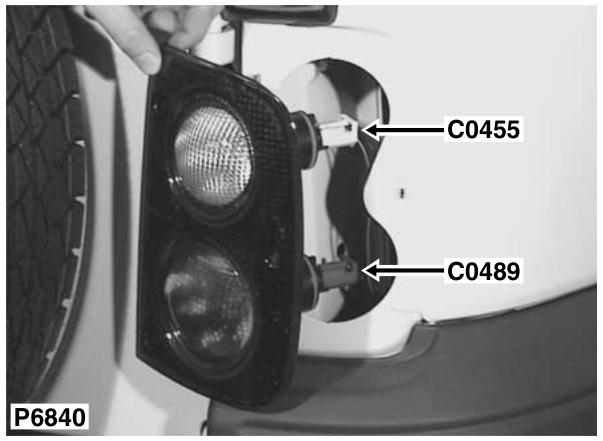

Location: RH rear of vehicle
Colour: RED Gender: Female
