Description: Amplifier-Power-ICE

Make

Land Rover

Model

Freelander Electrical Library

Year

2001 on

Section

C0491 Amplifier-Power-ICE › Description: Amplifier-Power-ICE

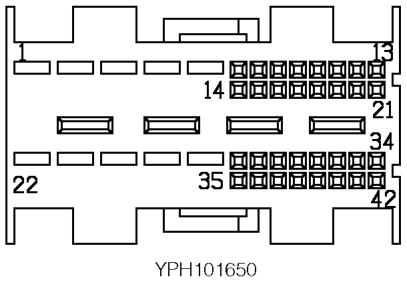

ConnectorsDescription: Amplifier-Power-ICE

Cav 1	Col SB	Cct ALL
2	SN	ALL
3	YB	ALL
4	YK	ALL
5	PK	ALL
8	BG	ALL
9	BP	ALL
10	PY	ALL
13	UB	ALL
16	BO	ALL
17	BU	ALL
20	WO	12
21	UK	ALL
22	OB	ALL
23	OK	ALL
24	SW	ALL
25	SR	ALL
26	B	ALL
29	BR	ALL
30	BS	ALL
31	SB	ALL
32	SK	ALL
37	BN	ALL
38	BW	ALL

Description: Amplifier-Power-ICE

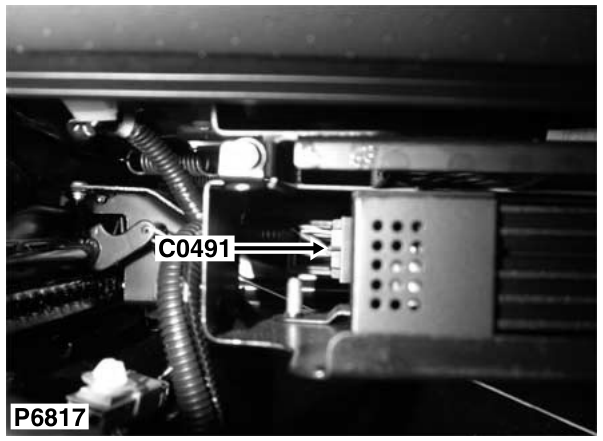

Location: Beneath driver's seat

Colour: BLACK Gender: Female
