Description: Modulator-ABS

Make

Land Rover

Model

Freelander Electrical Library

Year

2001 on

Section

C0501 Modulator-ABS › Description: Modulator-ABS

ConnectorsDescription: Modulator-ABS

Cav 1	Col NK	Cct ALL
2	K	ALL
4	W	ALL
6	PS	ALL
9	BW	ALL
11	YB	ALL
13	YN	ALL
15	YN	ALL
16	B	ALL
24	U	ALL
26	Y	ALL
32	NR	ALL
33	YB	ALL
34	Y	ALL
35	BR	ALL
36	G	ALL
37	GB	ALL
38	GP	ALL
39	WO	ALL
40	R	ALL
41	GR	ALL
42	WB	ALL
43	W	ALL
44	YB	ALL
45	R	ALL
46	RB	ALL
47	B	ALL

Description: Modulator-ABS

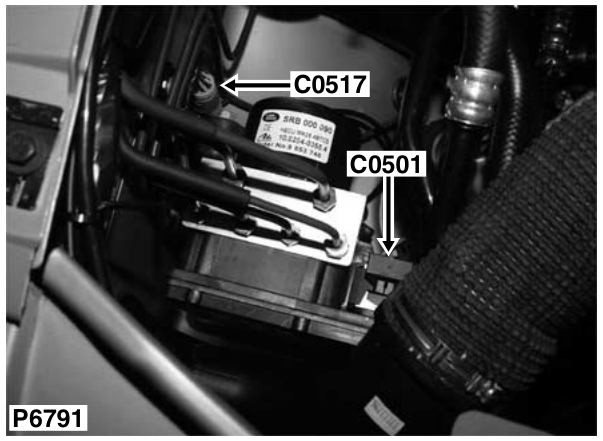

Location: Front RH side of engine compartment

Colour: BLACK Gender: Female
