Description: Header
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0723 Header › Description: Header
ConnectorsDescription: Header
| Cav 1 | Col B | Cct 4 |
| 2 | B | 39 |
| 3 | B | 4 |
| 4 | B | 4 |
| 5 | B | 4 |
| 6 | B | 4 |
| 7 | B | 4 |
| 8 | B | 4 |
| 13 | B | 4 |
| 14 | B | ALL |
| 15 | B | ALL |
| 16 | B | ALL |
| 17 | B | ALL |
| 18 | B | 39 |
| 19 | B | 4 |
| 20 | B | 4 |

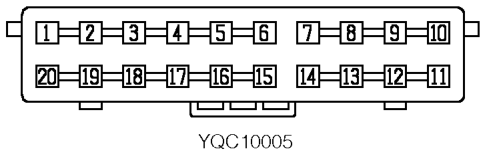

Description: Header

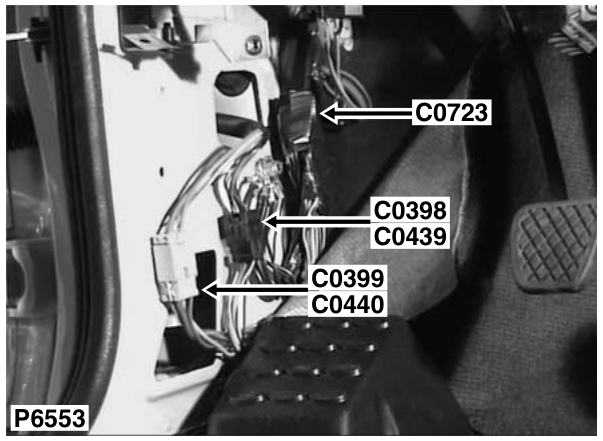

Location: Base of driver side 'A' post
Colour: BLUE Gender: Female
