Colour: NATURAL Gender: Male
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0787 Sensor-Throttle position (TP) › Colour: NATURAL Gender: Male
ConnectorsColour: NATURAL Gender: Male
| Cav 1 | Col RY | Cct ALL |
| 2 | RN | ALL |
| 4 | RU | ALL |
| 5 | YR | ALL |
| 6 | NR | ALL |
| 8 | UR | ALL |

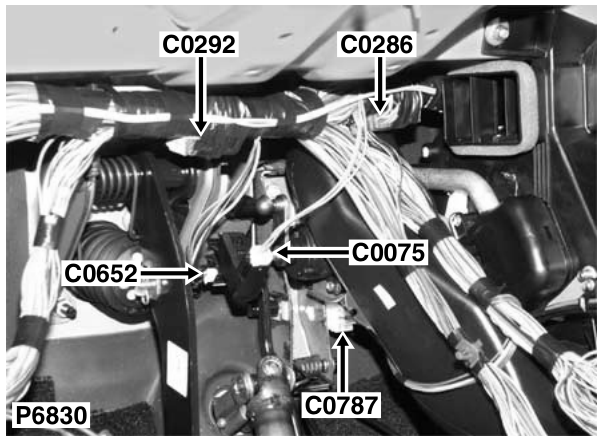

Description: Sensor-Throttle position (TP) Location: Behind driver side of fascia
Colour: NATURAL Gender: Male
