Description: Pump-Fuel
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0860 Pump-Fuel › Description: Pump-Fuel
ConnectorsDescription: Pump-Fuel
| Cav 1 | Col G | Cct 18 |
| 2 | BG | 18 |
| 3 | U | 18 |
| 4 | NK | 18 |

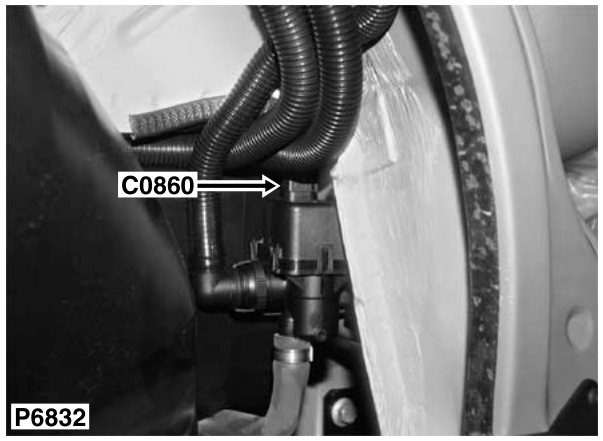

Description: Pump-Fuel
Location: Below RH rear wheelarch
Colour: BLACK Gender: Female
