Land Rover Freelander Electrical Library (2001 on)05 · Connectors
05 · General

Description: ECU-Mirror-Folding

Make
Land Rover
Model
Freelander Electrical Library
Year
2001 on
Section
C0907 ECU-Mirror-Folding › Description: ECU-Mirror-Folding
ConnectorsDescription: ECU-Mirror-Folding
Cav
1
Col
O
Cct
ALL
2UBALL
3YALL
4NSALL
5BALL
Diagram

Description: ECU-Mirror-Folding

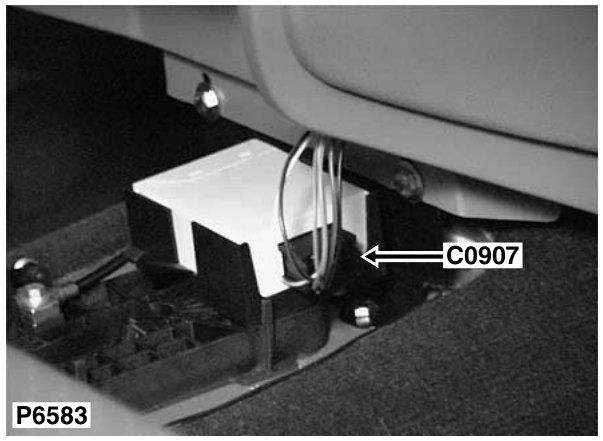

Location: Beneath centre console

Description: ecu-mirror-folding – Location: Beneath centre console

Colour: Gender:
