Description: Head Unit-Audio System
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0921 Head Unit-Audio System › Description: Head Unit-Audio System
ConnectorsDescription: Head Unit-Audio System
| Cav 1 | Col WO | Cct 12 |
| 2 | BW | ALL |
| 2 | GN | 12 |
| 3 | BR | ALL |
| 4 | P | 10 |
| 4 | PK | ALL |
| 5 | PY | ALL |
| 6 | RO | ALL |
| 7 | LGW | ALL |
| 8 | B | ALL |

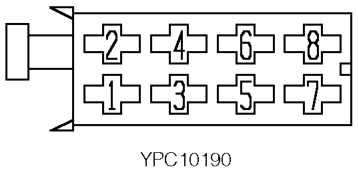

Description: Head Unit-Audio System

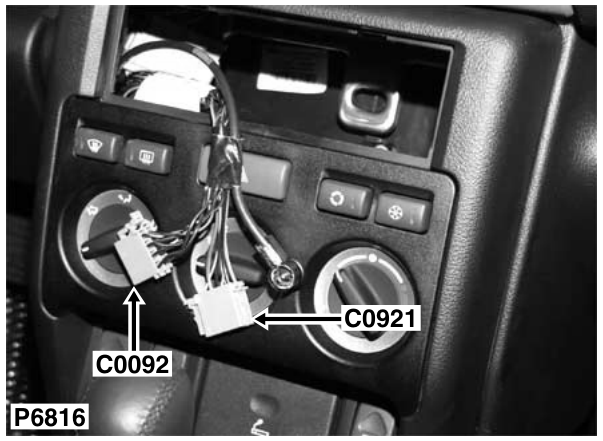

Location: Behind centre console
Colour: GREY Gender: Female
