Description: Header

Make

Land Rover

Model

Freelander Electrical Library

Year

2001 on

Section

C1000 Header › Description: Header

ConnectorsDescription: Header

Cav 1	Col P	Cct ALL
2	P	ALL
3	P	ALL
4	P	ALL
5	RB	20
6	RB	20
7	RB	20
9	RO	ALL
10	RO	ALL
11	RO	ALL
12	RO	ALL
13	B	ALL
14	B	ALL
15	B	ALL
16	B	48
17	B	ALL
18	B	ALL
19	B	ALL
20	B	ALL

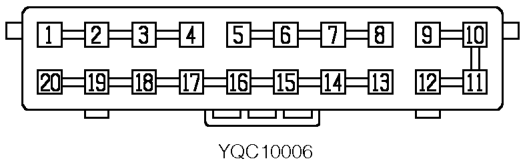

Description: Header

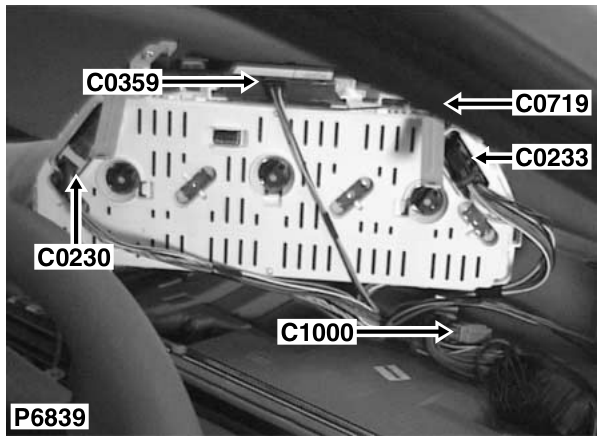

Location: Behind centre of fascia

Colour: GREEN Gender: Female

05 General
