Colour: BLACK Gender: Female

Make

Land Rover

Model

Freelander Electrical Library

Year

2001 on

Section

C1959 Interface-Cruise control › Colour: BLACK Gender: Female

ConnectorsColour: BLACK Gender: Female

Cav 1	Col B	Cct ALL
2	RG	30
3	RW	30
4	PG	8
4	UW	30
5	BU	8
5	YN	30
6	GR	8
6	YB	30
7	WY	30
8	NK	30
9	PG	8
9	WU	30
11	B	8
12	WY	8

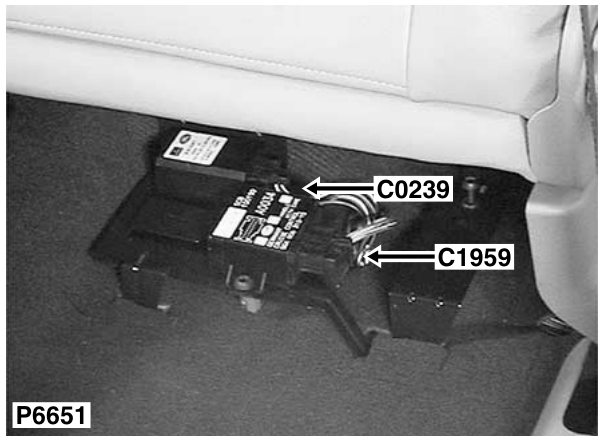

Description: Interface-Cruise control Location: Beneath RH seat

Colour: BLACK Gender: Female

05 General
