Switch - Ignition
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C028 › Switch - Ignition
ConnectorsSwitch - Ignition
Switch - Ignition

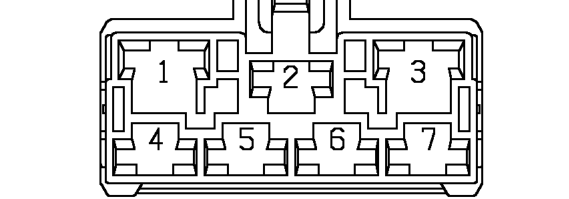

Female
BROWN

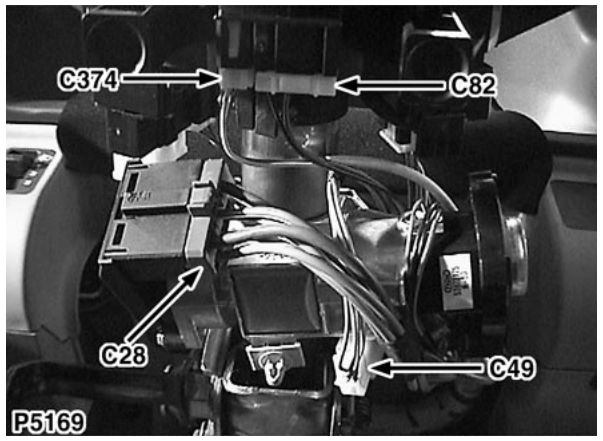

Underside of steering column
| Cav | Col | CCT |
|---|---|---|
| 1 | N | ALL |
| 2 | NW | ALL |
| 3 | NR | ALL |
| 4 | WR | ALL |
| 5 | G | ALL |
| 6 | SU | ALL |
| 7 | PS | ALL |
