Female

Make

Land Rover

Model

Freelander Electrical Library

Year

1998–2000

Section

C047 › Female

ConnectorsFemale

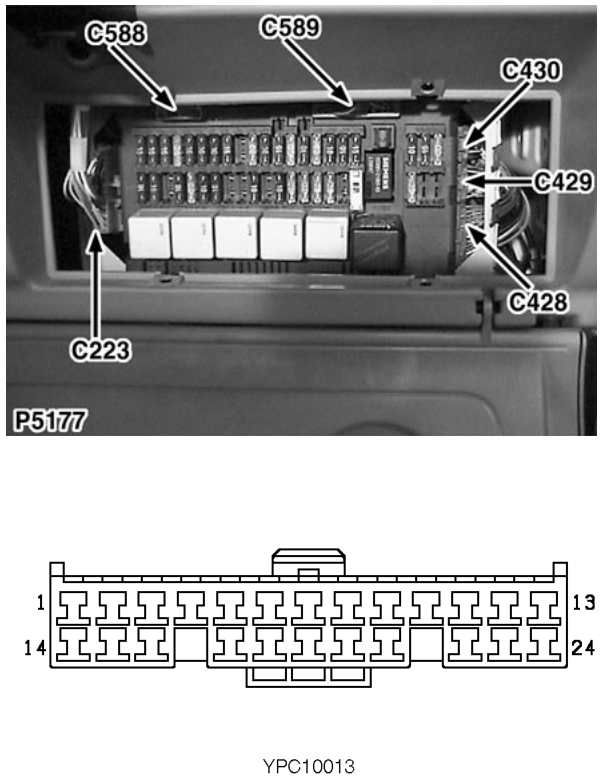

Main harness to fascia harness

Female

NATURAL

Behind fascia trim panel

Cav	Col	CCT
1	UB	ALL
2	GB	ALL
3	WB	ALL
4	GB	ALL
5	GU	ALL
6	WO	ALL
7	WR	6
8	U	ALL
9	GO	ALL
10	NY	ALL
11	YR	ALL
12	WS	6

Cav	Col	CCT
13	Y	ALL
15	WK	6
16	WY	6
17	BY	ALL
18	BP	ALL
19	SW	ALL
20	BN	ALL
21	BU	ALL
22	LGW	ALL
23	S	ALL
24	Y	ALL
