Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C063 › Female
ConnectorsFemale

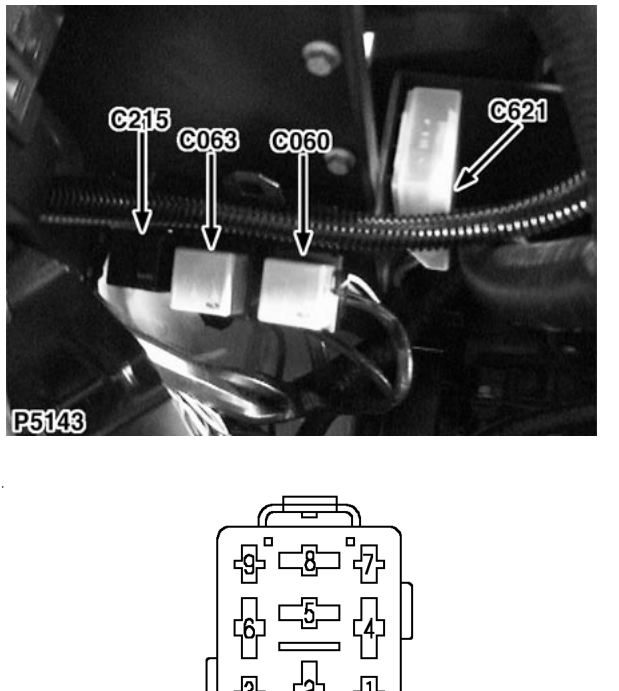

Relay - main
Female
BLACK
Beneath engine compartment fusebox
| Cav | Col | CCT |
|---|---|---|
| 2 | N | ALL |
| 4 | N | ALL |
| 6 | BW | ALL |
| 8 | NK | ALL |
