Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C072 › Female
ConnectorsFemale
Switch - Heated rear screen

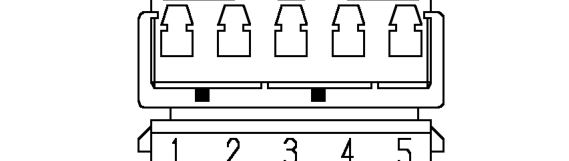

Female
BLUE

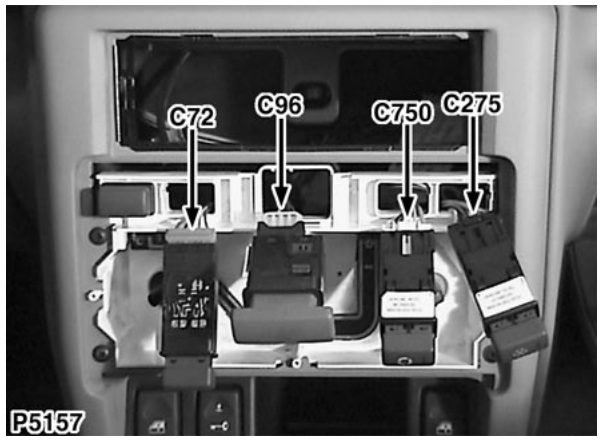

Behind centre console
| Cav | Col | CCT |
|---|---|---|
| 1 | GY | ALL |
| 2 | RO | ALL |
| 4 | B | ALL |
| 5 | NG | ALL |
