Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C092 › Female
ConnectorsFemale

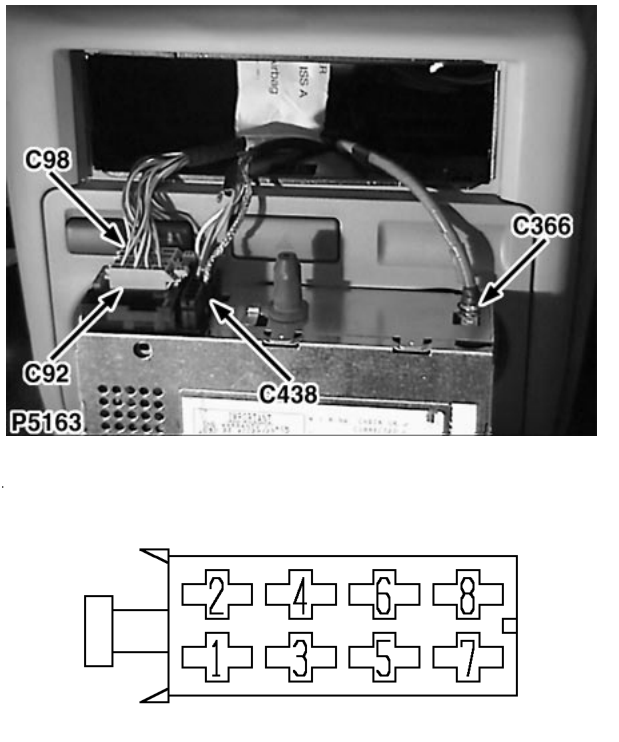

Radio / cassette player
Female
BROWN
Behind radio
| Cav | Col | CCT |
|---|---|---|
| 1 | UK | ALL |
| 2 | UB | ALL |
| 3 | OK | ALL |
| 4 | OB | ALL |
| 5 | YK | ALL |
| 6 | YB | ALL |
| 7 | SK | ALL |
| 8 | SB | ALL |
