Unit - Fuel Tank
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C114 › Unit - Fuel Tank
ConnectorsUnit - Fuel Tank

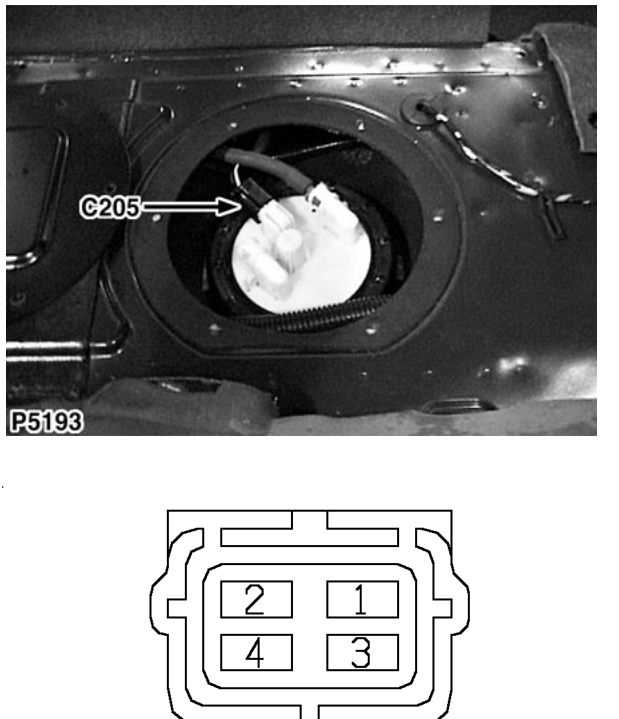

Unit - Fuel Tank
Female
BLACK
Beneath rear seat
| Cav | Col | CCT |
|---|---|---|
| 1 | WP | ALL |
| 2 | B | ALL |
| 3 | GB | ALL |
| 4 | B | ALL |
