Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section

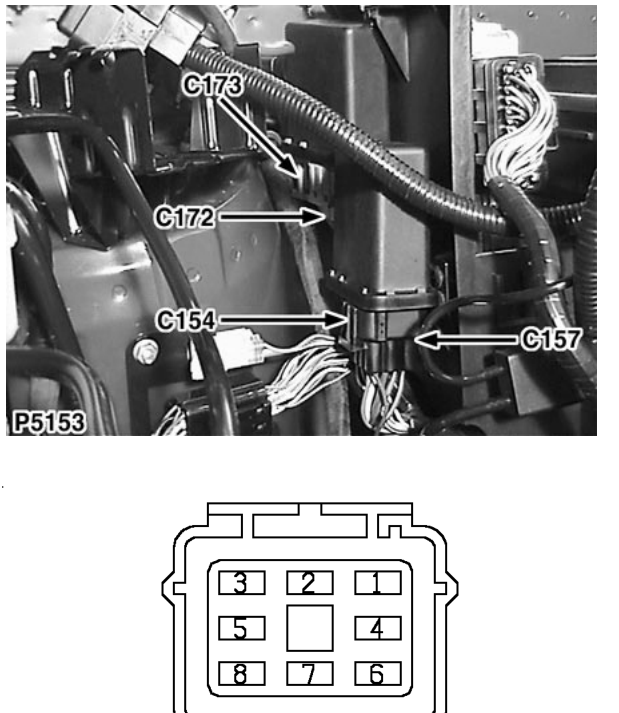

- C157 › Female
ConnectorsFemale
Relay module - Engine management
Female
BLACK
Beneath engine compartment fusebox
| Cav | Col | CCT |
|---|---|---|
| 1 | NG | ALL |
| 2 | UO | ALL |
| 3 | NK | ALL |
| 4 | WP | ALL |
| 5 | NR | ALL |
| 6 | N | ALL |
| 7 | N | ALL |
| 8 | NK | ALL |
