Male
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C162 › Male
ConnectorsMale

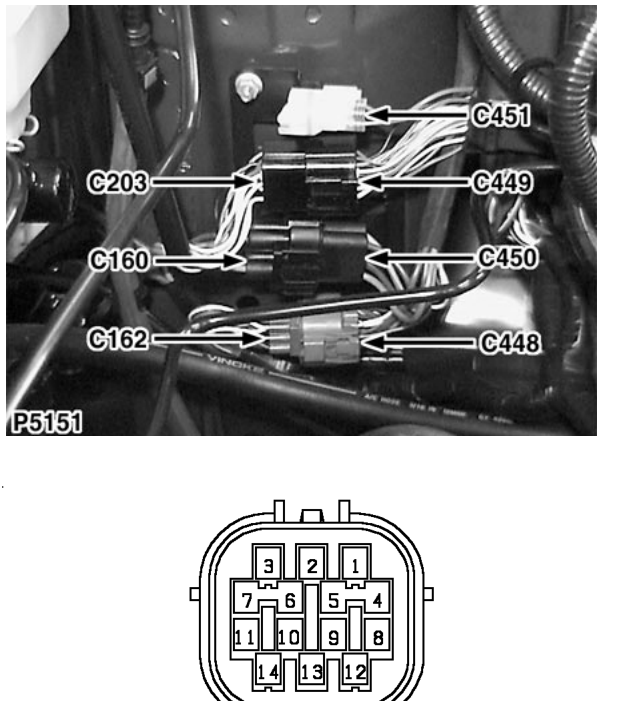

Engine harness to main harness
Male
GREY
Lower LH rear of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 1 | WY | ALL |
| 2 | KB | ALL |
| 3 | NY | ALL |
| 4 | GP | ALL |
| 5 | WO | ALL |
| 6 | U | ALL |
| 7 | N | ALL |
| 8 | GO | ALL |
| 9 | UG | 2 |
| 10 | UR | 2 |
| 11 | SK | ALL |
| 12 | NG | ALL |
| 13 | GB | ALL |
| 14 | YR | ALL |
