Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C177 › Female
ConnectorsFemale

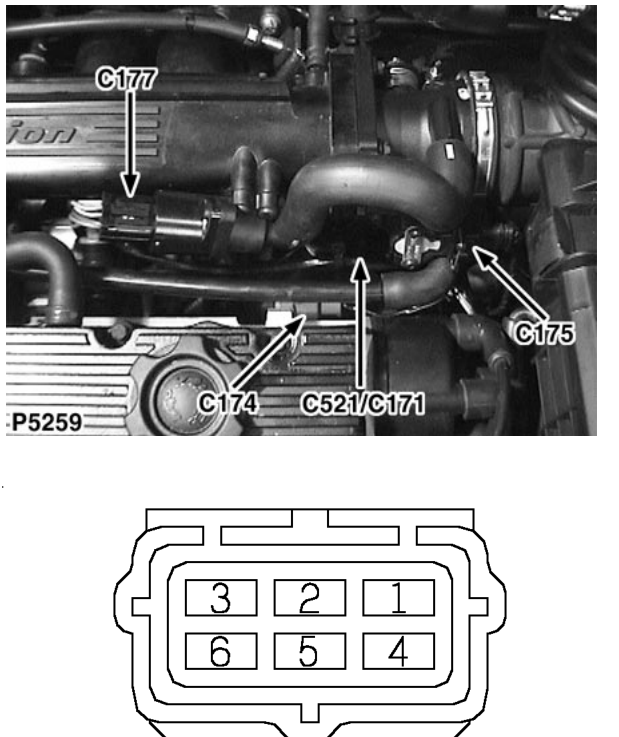

Idle air control valve (IACV)
Female
BLACK
Below throttle housing, LH side of engine
| Cav | Col | CCT |
|---|---|---|
| 1 | SO | ALL |
| 2 | NK | ALL |
| 3 | NO | ALL |
| 4 | PR | ALL |
| 6 | ULG | ALL |
