Male

Make

Land Rover

Model

Freelander Electrical Library

Year

1998–2000

Section

C223 › Male

ConnectorsMale

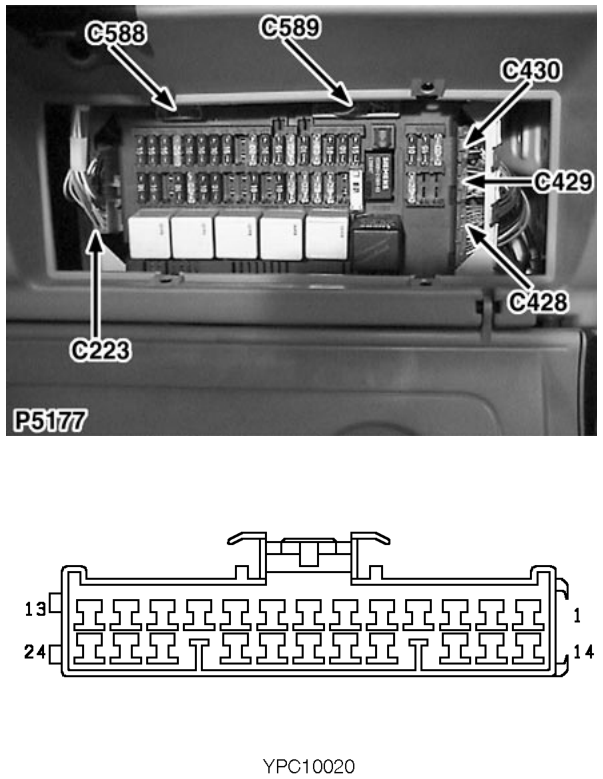

Main harness to fascia harness

Male

NATURAL

Behind fascia trim panel

Cav	Col	CCT
1	UB	ALL
2	GB	ALL
3	WB	ALL
4	GB	ALL
5	GU	ALL
6	WO	ALL
7	WR	ALL
8	U	ALL
9	GO	ALL
10	NY	ALL
11	YR	ALL
12	WS	ALL

Cav	Col	CCT
13	Y	ALL
15	WK	ALL
16	WY	ALL
17	BY	5
18	BP	5
19	SW	5
20	BN	5
21	BU	5
22	LGW	ALL
23	S	ALL
24	Y	ALL
