Switch - Window - Front -
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section

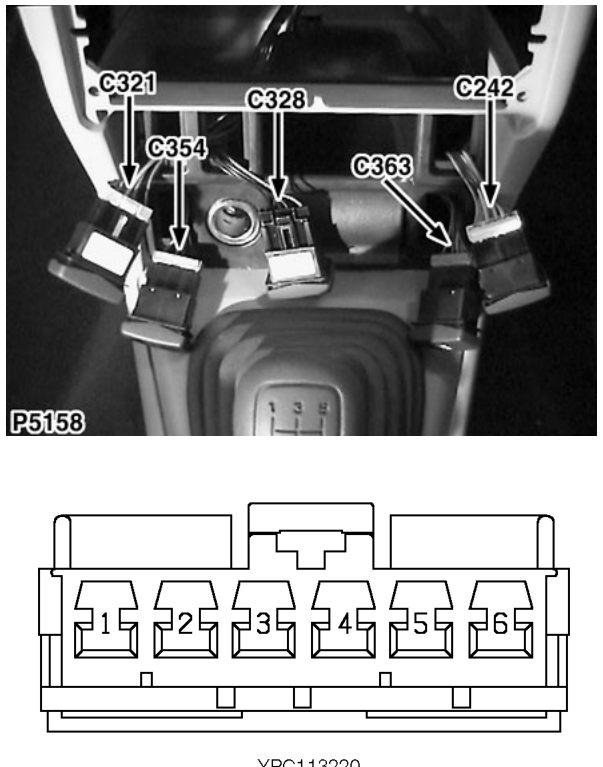

- C242 › Switch - Window - Front -
ConnectorsSwitch - Window - Front -
Switch - Window - Front -
RH
Female
WHITE
Behind centre console
| Cav | Col | CCT |
|---|---|---|
| 1 | B | ALL |
| 2 | SO | ALL |
| 3 | OU | ALL |
| 4 | OR | ALL |
| 6 | RO | ALL |
