Land Rover Freelander Electrical Library (1998-2000)05 · Connectors
05 · General

Motor - Window - Front - RH

Make
Land Rover
Model
Freelander Electrical Library
Year
1998–2000
Section
C326 › Motor - Window - Front - RH
ConnectorsMotor - Window - Front - RH
Diagram

Motor - Window - Front - RH

Female

BLACK

Behind RH front door trim panel

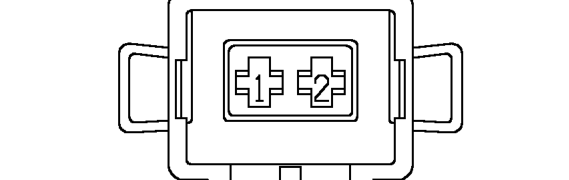

Female – Behind RH front door trim panel
CavColCCT
1ORALL
2OUALL
