Switch - Sunroof - Front
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section

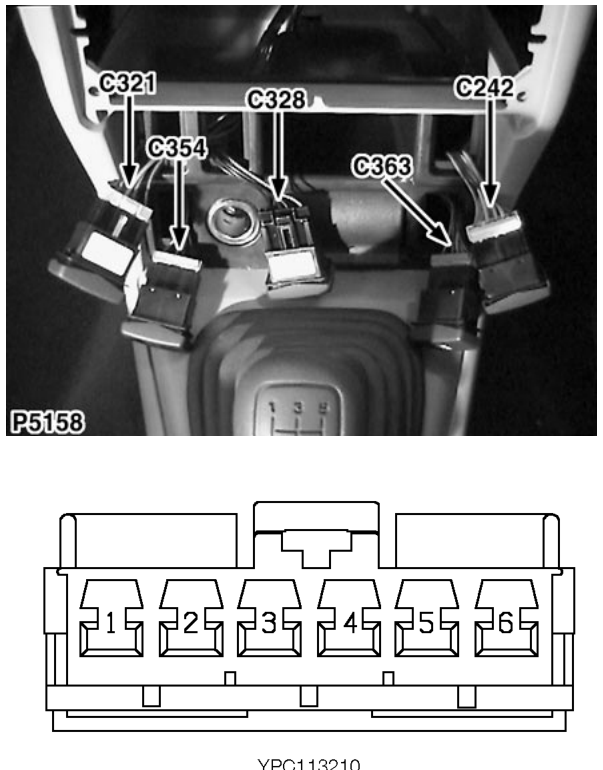

- C363 › Switch - Sunroof - Front
ConnectorsSwitch - Sunroof - Front
Switch - Sunroof - Front
Female
BLUE
Behind centre console
| Cav | Col | CCT |
|---|---|---|
| 1 | B | ALL |
| 2 | SR | ALL |
| 3 | S | ALL |
| 4 | G | ALL |
| 6 | RO | ALL |
