Male
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C396 › Male
ConnectorsMale

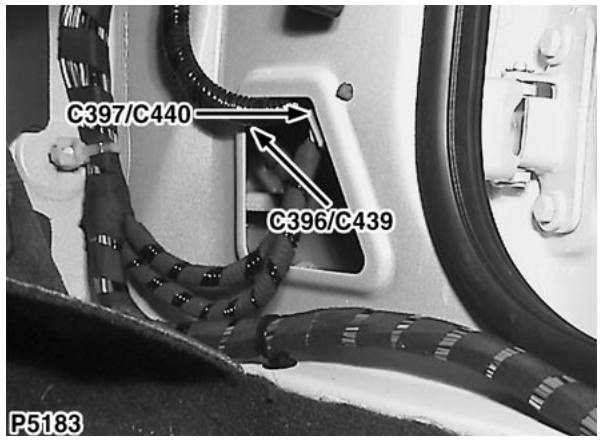

Main harness to door harness

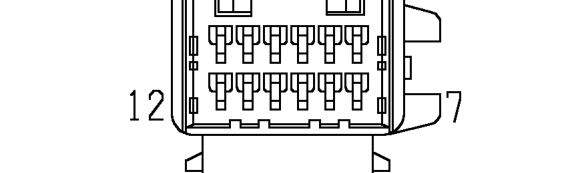

Male
BLACK
RH ’A’ post
| Cav | Col | CCT |
|---|---|---|
| 1 | BR | ALL |
| 2 | BK | ALL |
| 3 | PS | ALL |
| 3 | PW | ALL |
| 6 | OB | ALL |
| 7 | OK | ALL |
| 8 | SW | ALL |
| 9 | NG | ALL |
| 10 | BN | ALL |
| 11 | BP | ALL |
