Male
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C399 › Male
ConnectorsMale

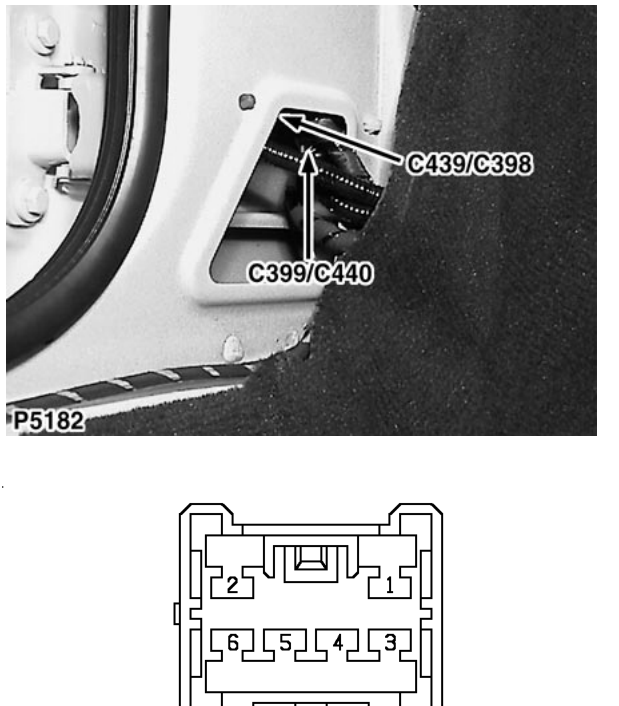

Main harness to door harness
Male
LIGHT GREY
LH ’A’ post
| Cav | Col | CCT |
|---|---|---|
| 1 | R | ALL |
| 2 | U | ALL |
| 3 | NK | ALL |
| 4 | B | ALL |
| 5 | O | ALL |
| 6 | K | ALL |
