Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C436 › Female
ConnectorsFemale

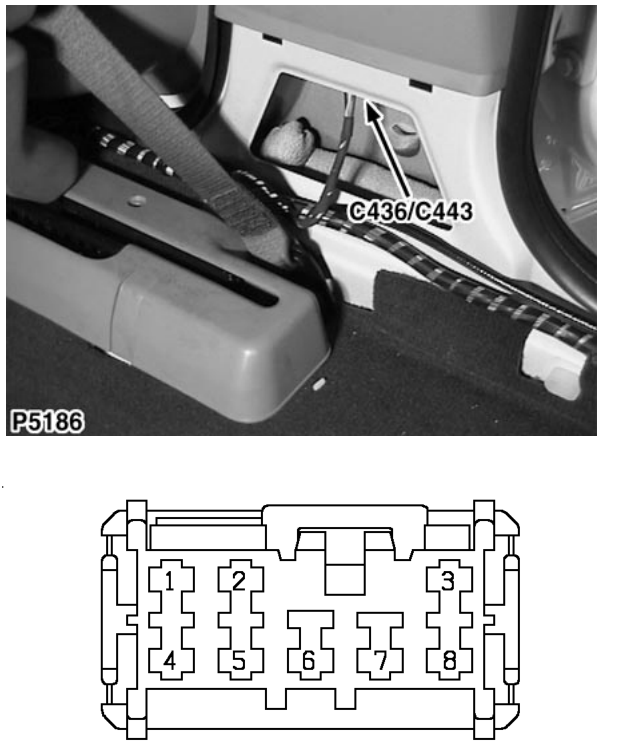

Main harness to door harness
Female
LIGHT GREY
Base of ’C’ post RH side
| Cav | Col | CCT |
|---|---|---|
| 1 | UB | ALL |
| 2 | UK | ALL |
| 4 | O | ALL |
| 5 | B | ALL |
| 6 | K | ALL |
| 7 | PW | ALL |
| 8 | NK | ALL |
