Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C439 › Female
ConnectorsFemale
Main harness to door harness - Left Hand Drive - 3 Door

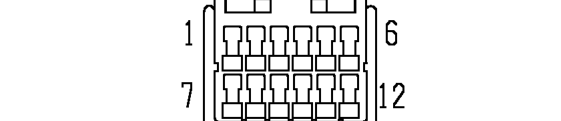

Female
BLACK

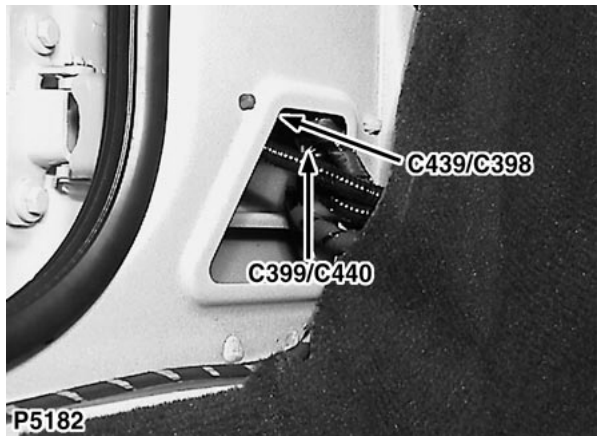

LH ’A’ post
| Cav | Col | CCT |
|---|---|---|
| 1 | BR | ALL |
| 2 | BK | ALL |
| 3 | PW | ALL |
| 6 | OB | ALL |
| 7 | OK | ALL |
