Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C441 › Female
ConnectorsFemale
Motor - Door lock - Front

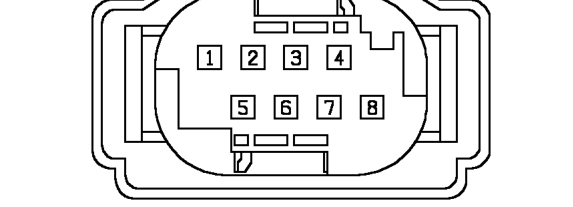

Female
BLACK

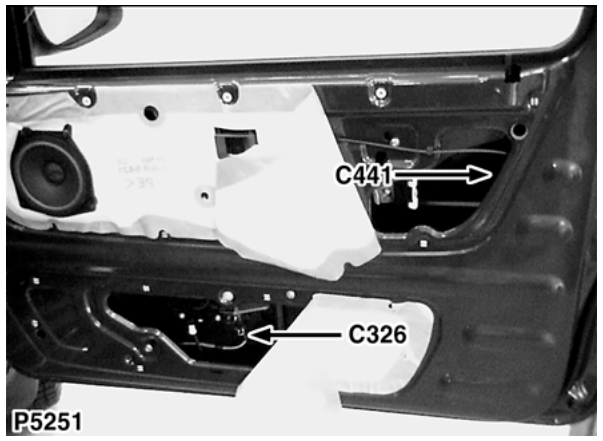

Behind front door trim panel
| Cav | Col | CCT |
|---|---|---|
| 1 | BK | ALL |
| 3 | BR | ALL |
| 4 | K | ALL |
| 5 | B | ALL |
| 6 | PW | ALL |
| 7 | O | ALL |
| 8 | NK | ALL |
