Male
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C473 › Male
ConnectorsMale

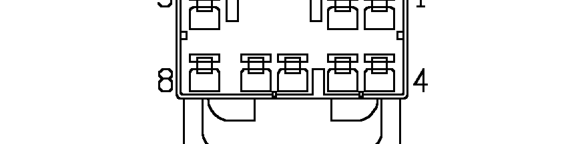

Main harness to trailer connector
Male
WHITE

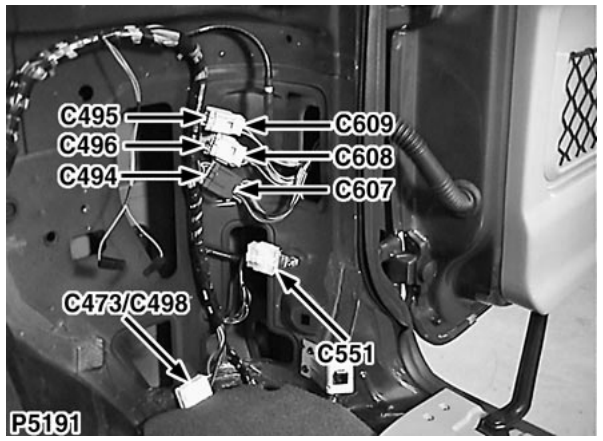

Behind RH rear trim panel
| Cav | Col | CCT |
|---|---|---|
| 1 | GR | ALL |
| 2 | RY | ALL |
| 3 | GW | ALL |
| 4 | B | ALL |
| 5 | RB | ALL |
| 6 | GP | ALL |
| 7 | RO | ALL |
