Modulator - ABS
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C501 › Modulator - ABS
ConnectorsModulator - ABS
Modulator - ABS
Female
BLACK

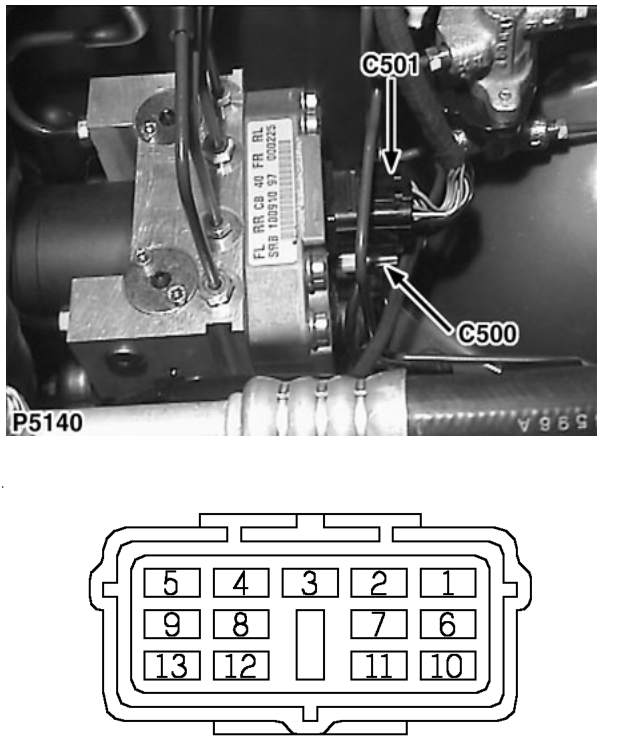

Front corner of engine compartment - RH side
| Cav | Col | CCT |
|---|---|---|
| 1 | SW | 6 |
| 2 | SR | 6 |
| 4 | SN | 6 |
| 5 | SY | 6 |
| 6 | B | 6 |
| 9 | RB | 6 |
| 10 | SP | 6 |
| 11 | SK | 6 |
| 12 | SU | 6 |
| 13 | SG | 6 |
