Pump - Return - ABS
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C507 › Pump - Return - ABS
ConnectorsPump - Return - ABS
Pump - Return - ABS

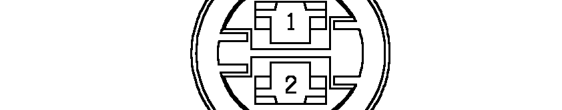

Female
NATURAL

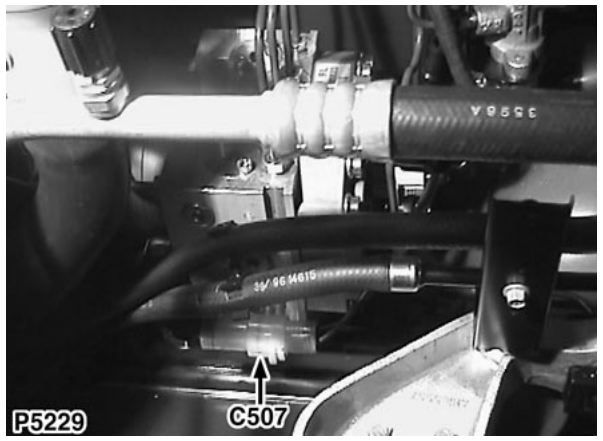

Front corner of engine compartment - RH side
| Cav | Col | CCT |
|---|---|---|
| 1 | NR | 6 |
| 2 | B | 6 |
