Male
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C521 › Male
ConnectorsMale
Engine harness to injector harness
Male
BLACK

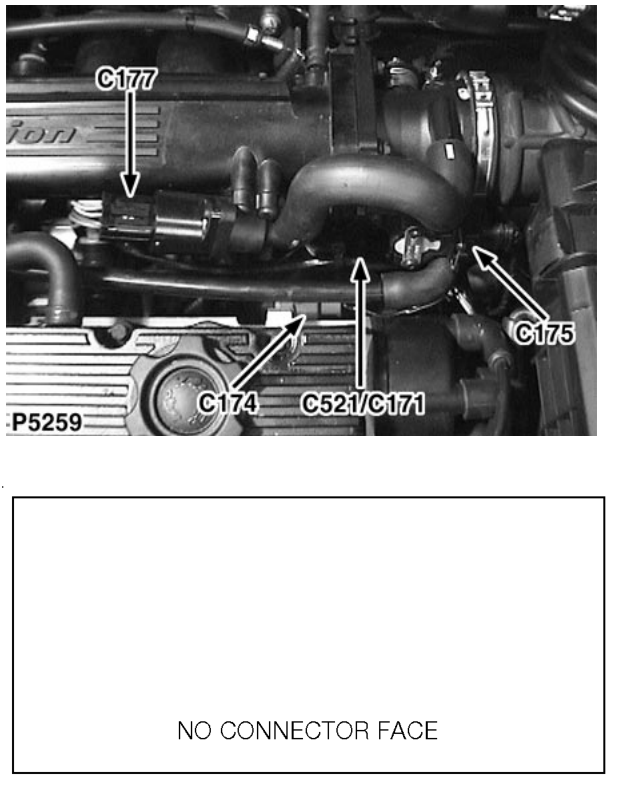

Below throttle housing, LH side of engine
| Cav | Col | CCT |
|---|---|---|
| 1 | NK | ALL |
| 2 | YU | ALL |
| 3 | YG | ALL |
