Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C587 › Female
ConnectorsFemale

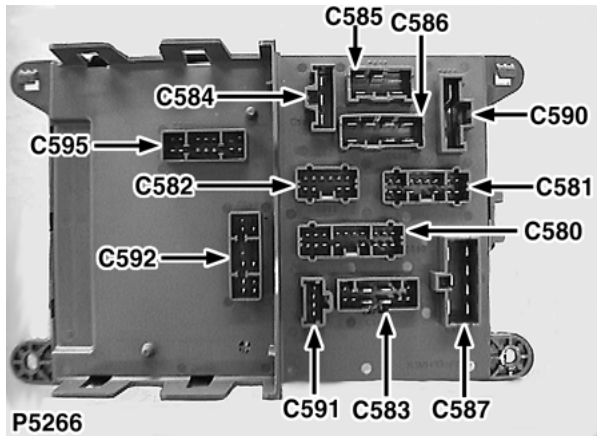

Fuse box - Passenger compartment
Female
BROWN

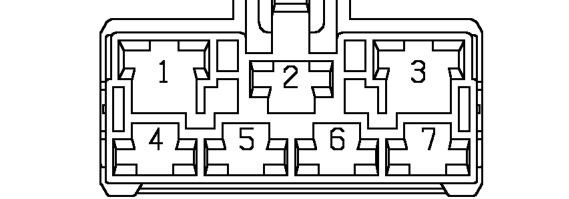

Behind passenger compartment fusebox
| Cav | Col | CCT |
|---|---|---|
| 1 | NW | ALL |
| 2 | B | ALL |
| 3 | N | ALL |
| 4 | US | ALL |
| 5 | R | ALL |
| 6 | UO | ALL |
| 7 | UW | ALL |
