Male
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C610 › Male
ConnectorsMale

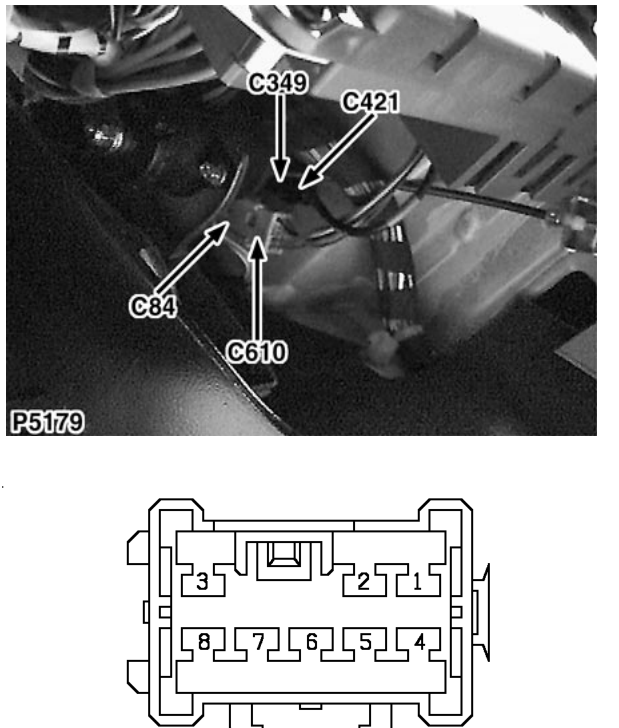

Main harness to roof harness
Male
LIGHT GREY
Under LH side of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | P | ALL |
| 2 | PW | ALL |
| 3 | B | ALL |
| 4 | G | 3 |
| 5 | S | 3 |
| 6 | WB | ALL |
| 7 | NB | ALL |
| 8 | SW | ALL |
