Motor - Lock - Taildoor
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section

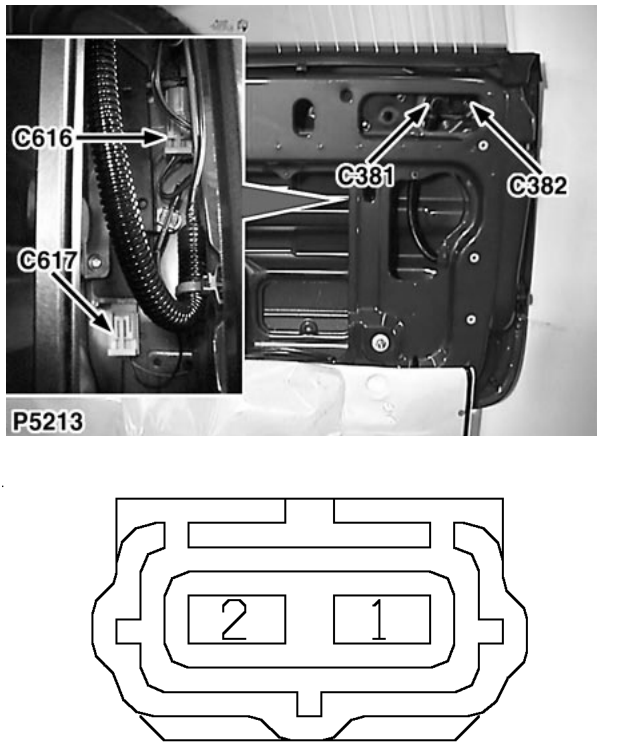

- C617 › Motor - Lock - Taildoor
ConnectorsMotor - Lock - Taildoor
Motor - Lock - Taildoor
Female
WHITE
LH side of taildoor
| Cav | Col | CCT |
|---|---|---|
| 1 | PU | ALL |
| 2 | B | ALL |
