Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C750 › Female
ConnectorsFemale

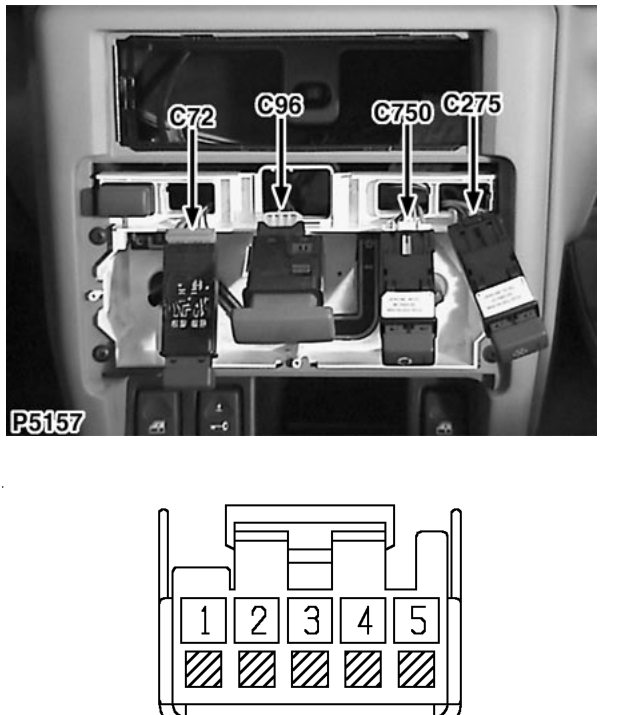

Switch - Fresh / recirculated air
Female
WHITE
Behind centre console
| Cav | Col | CCT |
|---|---|---|
| 1 | B | ALL |
| 2 | RB | ALL |
| 3 | Y | ALL |
| 4 | K | ALL |
| 5 | LGS | ALL |
