FBH Unit
The FBH unit is installed in the passenger side rear of the engine compartment, below the battery. It is connected in
series with the coolant supply to the heater assembly. Two electrical connectors on the FBH unit connect it to the
vehicle wiring.

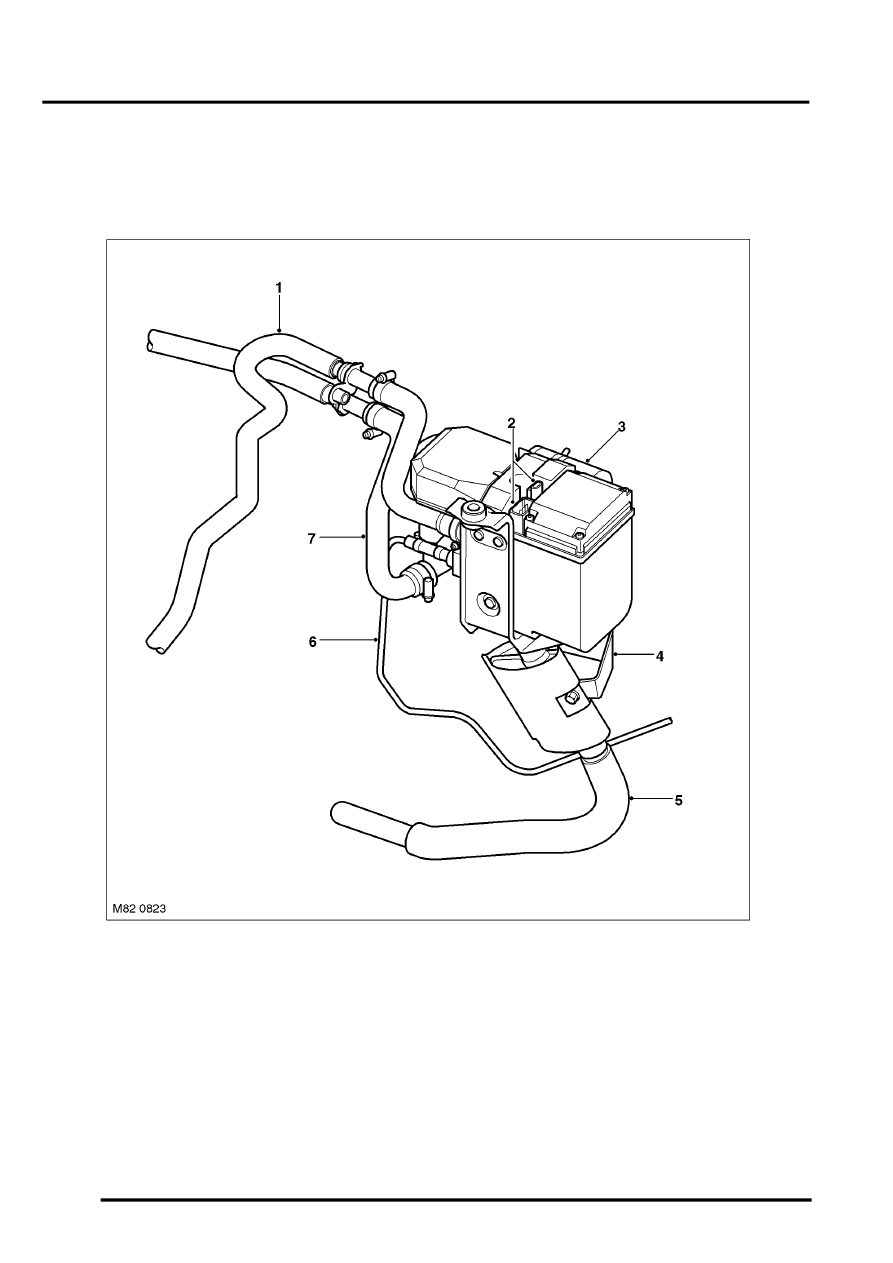

FBH Unit Components
1 Coolant outlet hose
2 Electrical connectors
3 Air inlet filter
4 Mounting bracket
5 Exhaust pipe
6 Fuel supply line
7 Coolant inlet hose
