L322 Range Rover Service Procedures
AIR CONDITIONING
82-20
REPAIRS

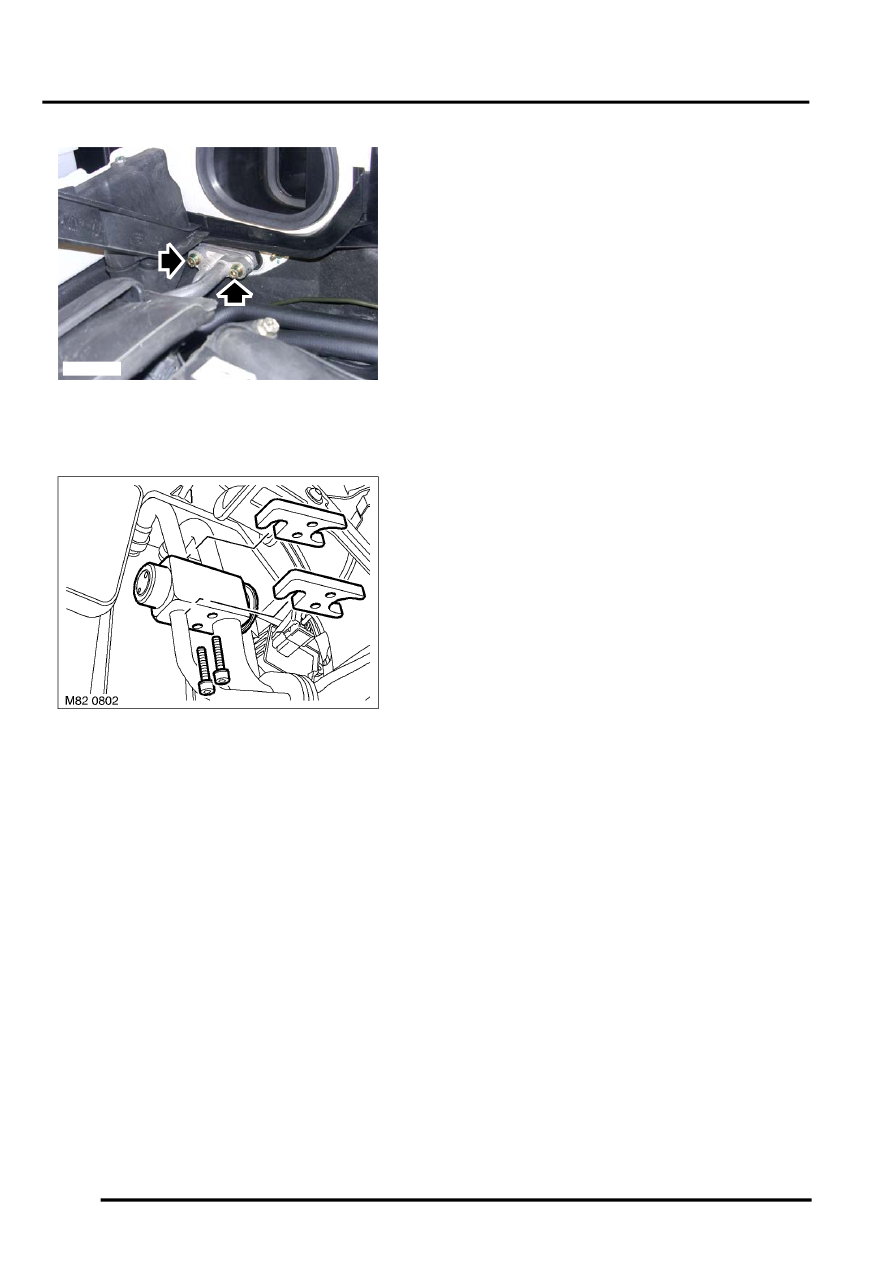

10. Remove 2 Allen bolts securing A/C pipes to
bulkhead, release pipes and discard 'O' rings.
11. Remove 2 Allen bolts securing A/C pipes to
TXV, remove clamps, release pipes and
discard 'O' rings.
12. Remove TXV.
13. Plug all connections.
Refit
1. Clean mating faces and seal recesses on
evaporator, TXV and A/C pipes.
2. Lubricate new 'O' rings with clean refrigerant oil
and fit to A/C pipes.
3. Position TXV to A/C pipes, fit clamps, fit bolts
and tighten to 6 Nm (4.4 lbf.ft).
4. Position A/C pipes to bulkhead, fit bolts and
tighten to 6 Nm (4.4 lbf.ft).
5. Fit and secure TXV cover.
6. Position and secure footwell heating duct.
7. Secure evaporator sensor harness.
8. Position fuse box and secure with screws.
9. Connect multiplugs to fuse box.
10. Fit glove box.
11. Recharge A/C system.
RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.
12. Fit air intake plenum.
13. Connect battery earth lead.
M82 0801
