Range Rover V8 DMTL Module - Tank Leakage Diagnostic (Repair)
EMISSION CONTROL - V8
17-2-8
REPAIRS
Module - Tank Leakage Diagnostic
(DMTL)
$% 17.45.41
Remove
1. Disconnect battery earth lead.
2. Remove RH rear wheel arch liner.
Liner - rear wheel arch - single.

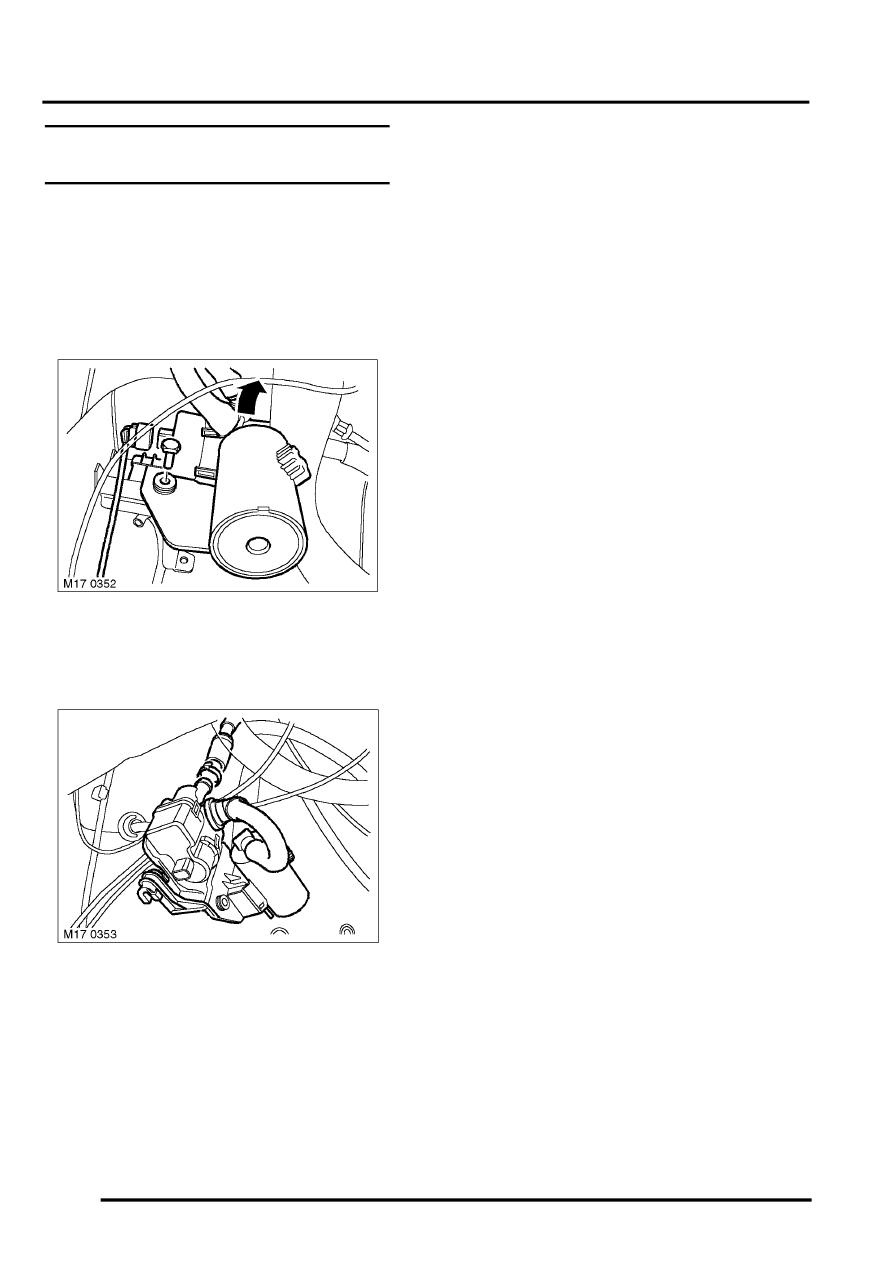

3. Disconnect multiplug from DMTL.
4. Remove bolt securing DMTL to body and
release from clips.
5. Position DMTL beneath fuel tank filler neck for
access. Remove and discard clip securing vent
pipe to DMTL.
CAUTION: Before disconnecting any part of
the fuel system, it is imperative that all dust,
dirt and debris is removed from around
components to prevent ingress of foreign
matter into fuel system.
6. Release vent pipe and remove DMTL
assembly.
7. Plug all connections.
NOTE: Do not carry out further dismantling if
component is removed for access only.
8. Release air filter pipe from DMTL.
9. Remove 3 Torx screws securing DMTL to
bracket and remove DMTL.
Refit
1. Position DMTL to bracket and secure with
screws. Connect air filter pipe.
2. Fit vent pipe to DMTL assembly and secure
with new clip.
3. Position DMTL to body, fit bolt and tighten to 10
Nm (7 lbf.ft).
4. Connect multiplug to DMTL.
5. Fit RH rear wheel arch liner.
Liner - rear wheel arch - single.
6. Connect the battery earth lead.
