EMISSION CONTROL - V8

REPAIRS

17-2-7

7. Remove screw securing RH front wheel arch

liner to wing.

8. Release front valance panel from front bumper

and position aside for access.

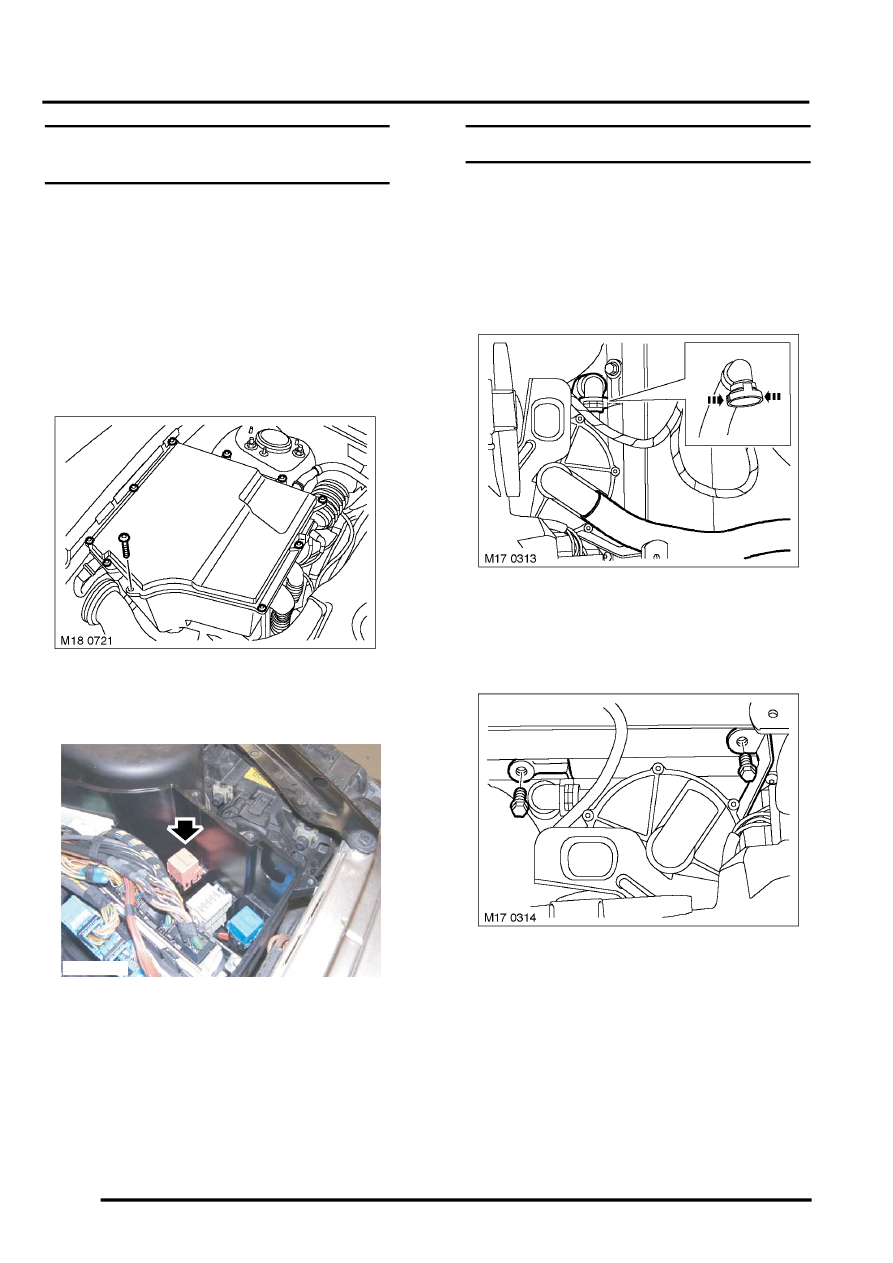

9. Disconnect multiplug from SAI pump, remove

bolt securing SAI pump and remove SAI pump.

Refit

1. Fit SAI pump and loosely fit lower securing bolt.
2. Fit SAI pump upper securing bolts and tighten

to 22 Nm (16 lbf.ft).

3. Tighten SAI pump lower securing bolt to 5 Nm

(4 lbf.ft).

4. Connect multiplug to SAI pump.
5. Align front valance panel to front bumper.
6. Fit and tighten screw securing RH front wheel

arch liner to wing.

7. Fit undertray.

 +

 EXTERIOR FITTINGS, REPAIRS,

Undertray - front.

8. Connect SAI pump air outlet hose to SAI pump.
9. Fit new clip and connect air intake hose to SAI

pump.

10. Fit air cleaner housing.

 +

 ENGINE MANAGEMENT SYSTEM -

V8, REPAIRS, Housing - air cleaner.

M17 0315
