Cylinder Head Overhaul for Range Rover V8 Engine
ENGINE - V8
12-2-90 OVERHAUL
7. Using a spanner on the hexagon, rotate inlet
camshaft until lobes of cylinder 8 face upwards.
8. Using a spanner on the hexagon, rotate
exhaust camshaft until lobes of cylinder 6 face
upwards.

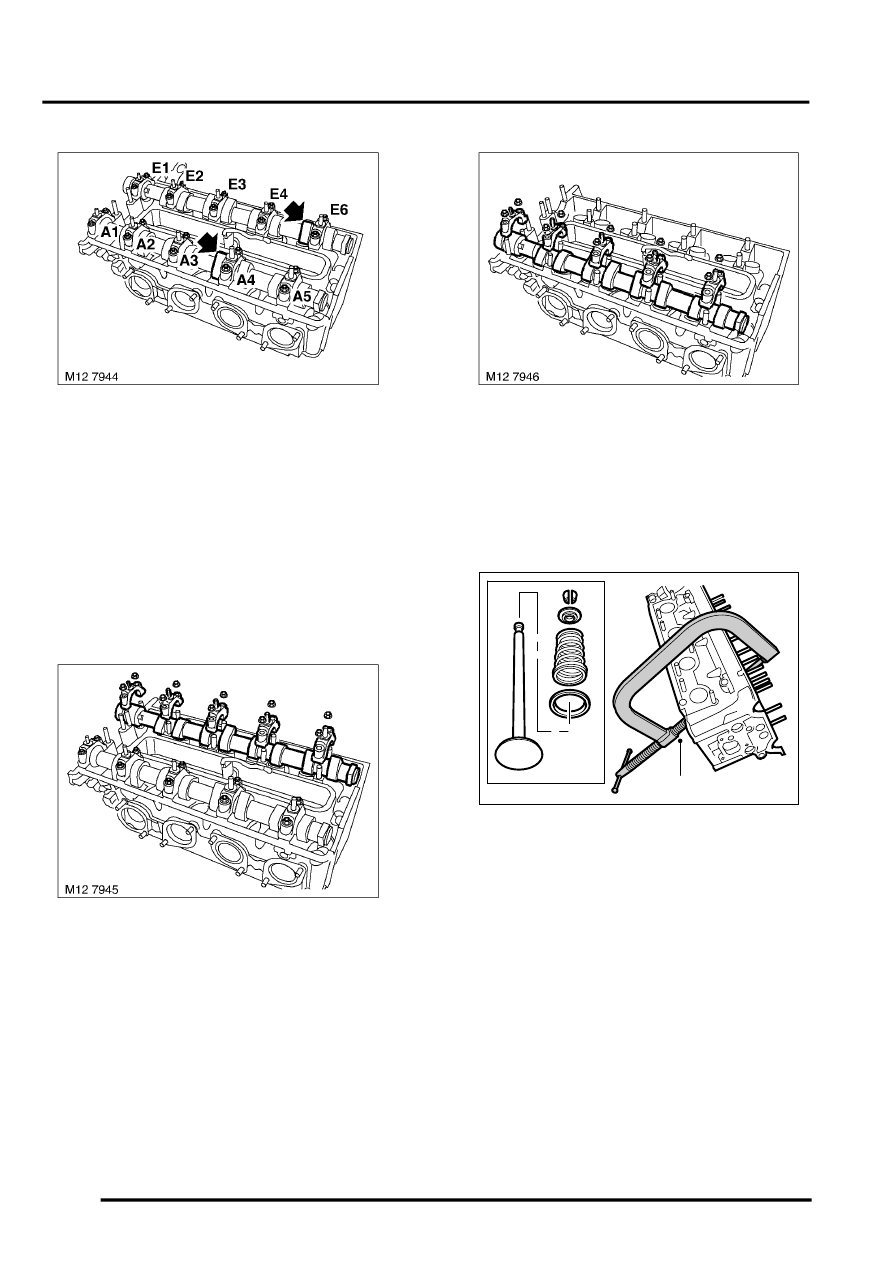

9. Identify camshaft bearing caps for refitting. Inlet
camshaft is marked 'E' with caps marked from
'E1' to 'E5' from driven end of camshaft when
viewed from inlet side of cylinder head. Exhaust
camshaft is marked 'A' with caps marked 'A1' to
'A5' from driven end of camshaft when viewed
from inlet side of cylinder head.
10. Evenly and progressively loosen and remove
10 nuts securing inlet camshaft bearing caps.
11. Remove camshaft bearing caps.
12. Remove inlet camshaft.
13. Evenly and progressively loosen and remove
10 nuts securing exhaust camshaft bearing
caps.
14. Remove camshaft bearing caps.
15. Remove exhaust camshaft.
16. Remove tappets. Retain in fitted order if to be
refitted.
17. Position LRT-12-034 to spring cap and
compress valve spring.
18. Remove 2 collets and release valve spring
compressor.
M12 7947
LRT-12-034
