L322 Range Rover Service Procedures
ENGINE - V8
REPAIRS 12-2-67

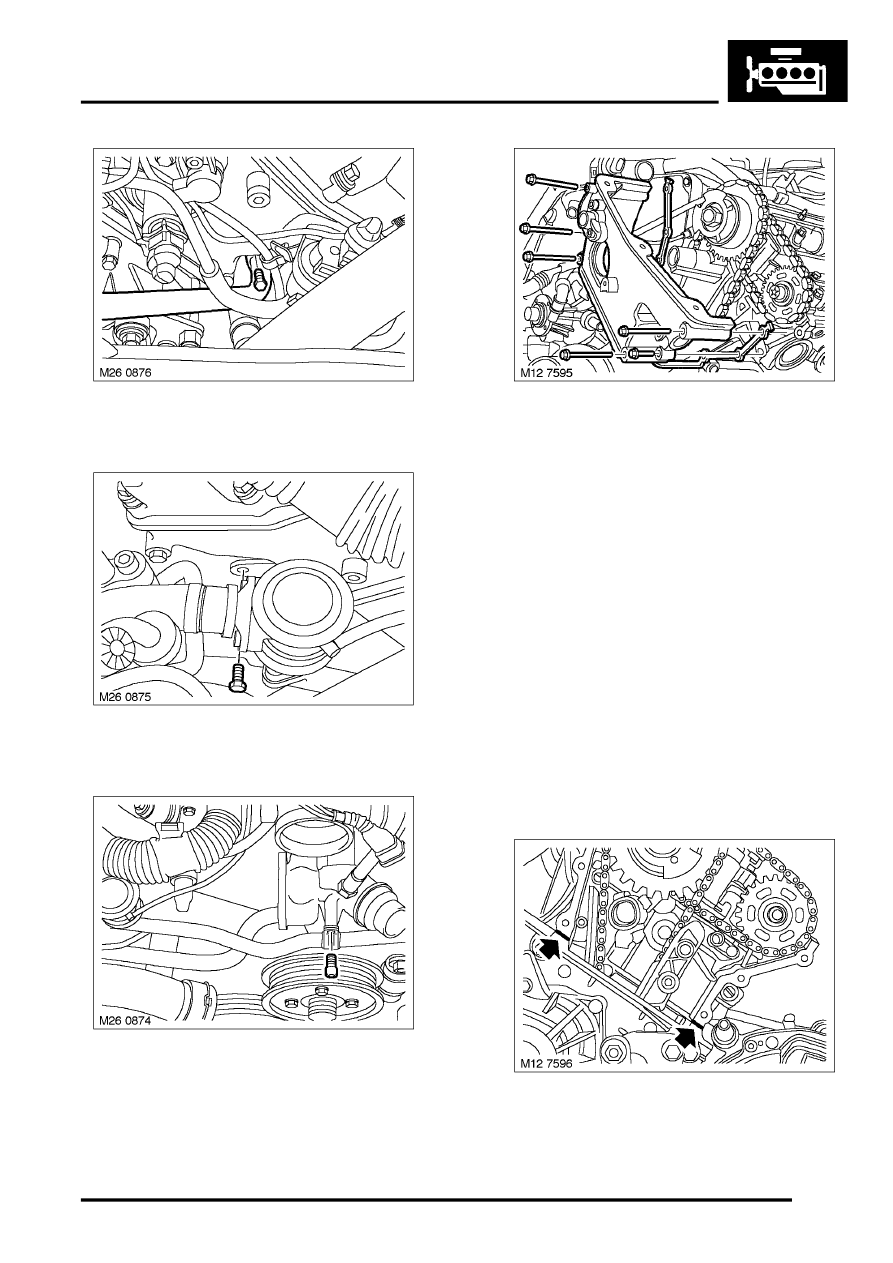

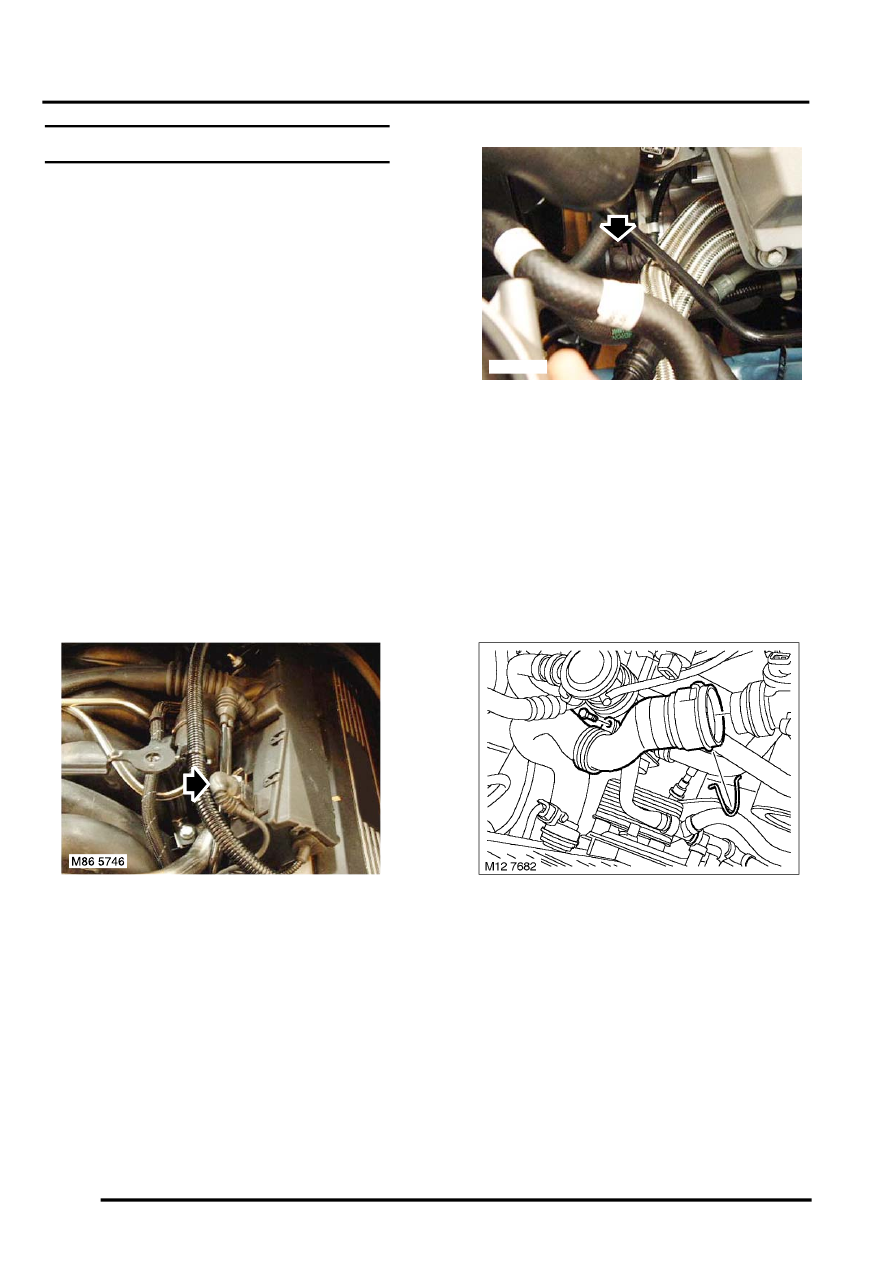

15. Remove bolt securing SAI pipe to LH cylinder
head.
16. Remove bolt securing SAI pipe to RH cylinder
head.
17. Remove Allen bolt securing secondary air
injection (SAI) pipe clip to coolant pump.
18. Release SAI pipe from cylinder heads and
position aside. Discard 'O' rings.
19. Remove 6 bolts securing timing gear cover to
cylinder head and remove timing gear cover.
20. Discard timing gear cover gasket.
NOTE: Do not carry out further dismantling if
component is removed for access only.
21. Remove 2 bolts securing 2 brackets to upper
timing gear cover and remove brackets.
22. Remove bolt securing CMP sensor and remove
sensor.
23. Discard 'O' ring.
Refit
1. Clean CMP sensor and mating face.
2. Fit new 'O' ring to CMP sensor.
3. Fit CMP sensor, fit bolt and tighten to 10 Nm (7
lbf.ft).
4. Position 2 brackets to timing gear cover, fit bolts
and tighten.
5. Clean timing gear cover and mating face, clean
dowels and dowel holes.
6. Fit new timing gear cover gasket.
7. Apply sealant, Part No. STC 50550 to areas
illustrated.
