8. Fit RH lower bolt to timing gear cover and
position cover to cylinder head.
NOTE: It is not possible to fit the RH lower bolt
after fitting the LH upper timing gear cover.
9. Fit remaining 5 bolts and hand tighten 6 bolts
securing timing cover.

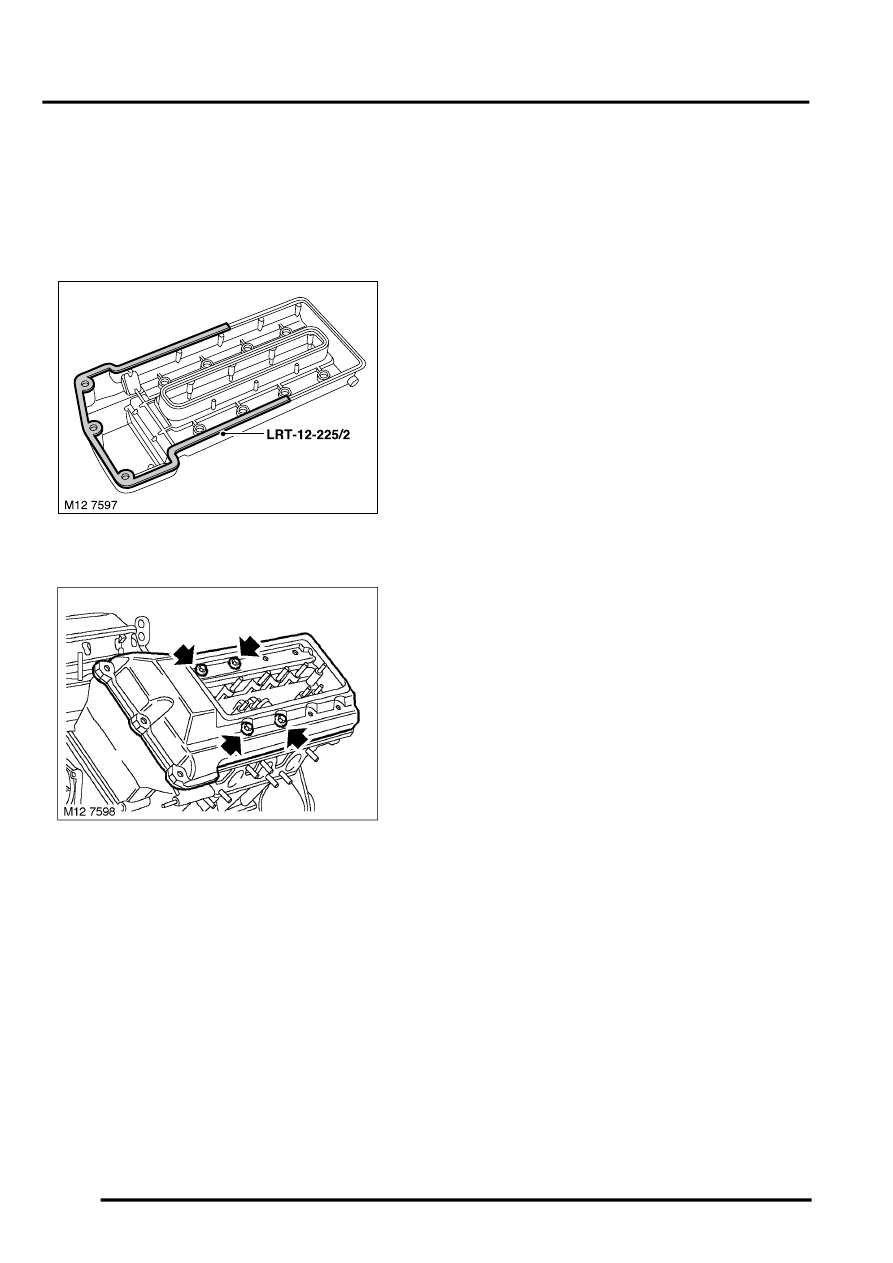

10. Fit LRT-12-225/2 to LH camshaft cover.
11. Fit camshaft cover and tool, fit 4 bolts and
tighten to 10 Nm (7 lbf.ft).
12. Tighten bolts securing timing gear cover to 15
Nm (11 lbf.ft).
13. Remove 4 bolts securing camshaft cover,
remove camshaft cover and LRT-12-225/2.
14. Fit 2 new 'O' rings to SAI pipe and position SAI
pipe to engine. Fit and tighten 3 bolts securing
SAI pipe to engine.
15. Fit bolt securing radiator lower coolant hose 'P'
clip to bracket and tighten.
16. Connect coolant hose to alternator and secure
with clip.
17. Fit LH VCC solenoid valve.
solenoid - variable camshaft control (VCC) -
LH.
18. Fit LH camshaft cover.
Engine - V8, REPAIRS, Gasket -
19. Connect multiplug to alternator and secure
alternator harness to 3 clips.
20. Secure fuel vapour pipe to bracket on timing
gear cover.
21. Connect multiplug to CMP sensor.
22. Secure CMP sensor harness to clip and secure
clip to timing gear cover.
23. Fit fan cowl.
24. Fill cooling system.
ADJUSTMENTS, Coolant - drain, flush &
refill.
25. Connect battery earth lead.
