L322 Range Rover Service Procedures
ENGINE - V8
12-2-18 REPAIRS
Control solenoid - variable camshaft
control (VCC) - LH
$% 12.30.60
Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.
GENERAL INFORMATION, Electrical

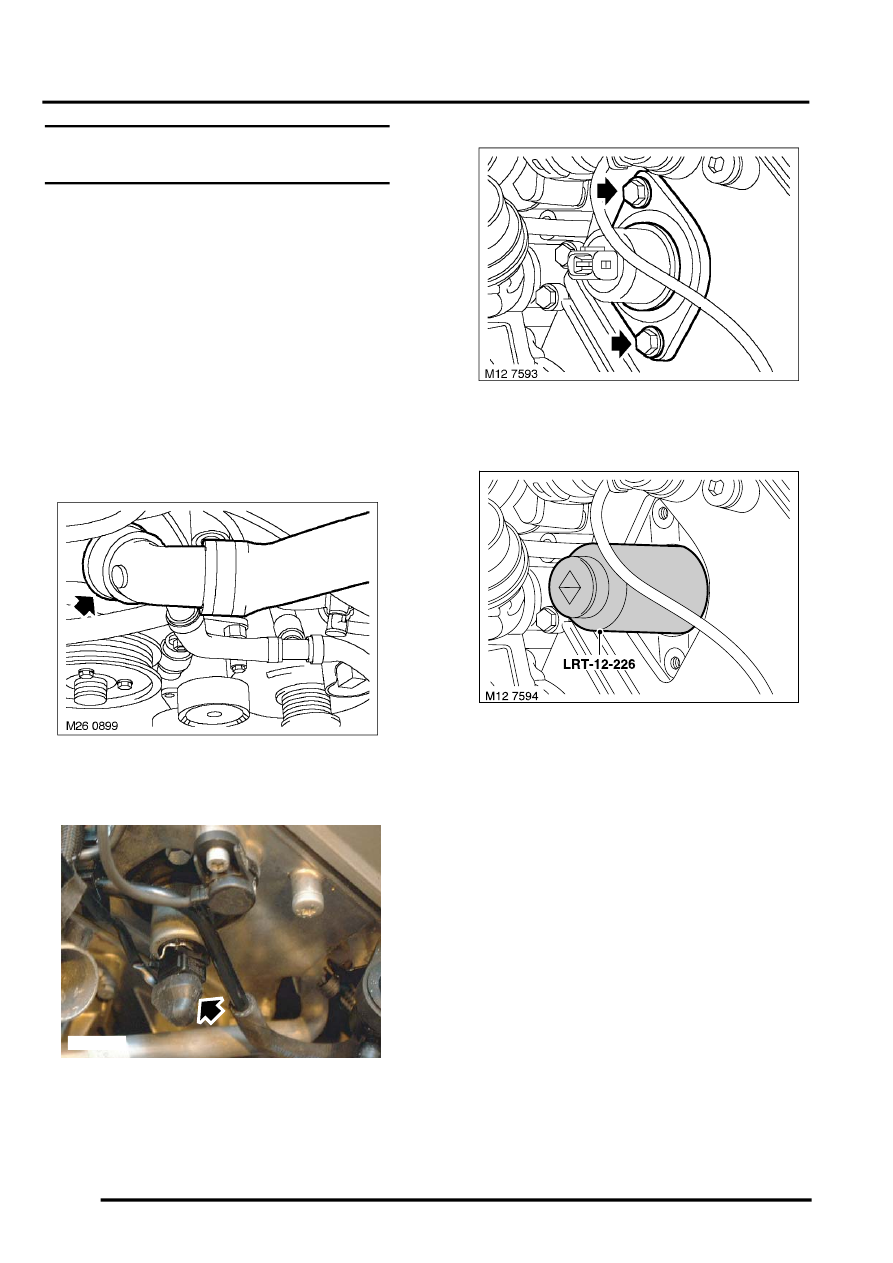

Remove
1. Position vehicle on lift.
2. Disconnect battery earth lead.
3. Drain cooling system.
ADJUSTMENTS, Coolant - drain, flush &
refill.
4. Release clip and disconnect coolant hose from
coolant pump.
5. Disconnect multiplug from VCC solenoid.
6. Remove 2 bolts securing VCC solenoid seal
and remove seal.
7. Fit LRT-12-226 to VCC solenoid and remove
solenoid.
CAUTION: Do not allow oil to come into
contact with the drive belts while removing
the solenoid.
Refit
1. Fit LRT-12-226 to VCC solenoid and fit
solenoid.
2. Tighten VCC solenoid to 25 Nm (18 lbf.ft) and
remove LRT-12-226.
3. Clean VCC solenoid, VCC solenoid seal and
mating faces.
4. Lubricate inner mating face of VCC solenoid
seal.
5. Fit VCC solenoid seal, fit bolts and tighten.
6. Connect multiplug to VCC solenoid.
7. Connect coolant hose to coolant pump and
secure with clip.
8. Fill cooling system.
ADJUSTMENTS, Coolant - drain, flush &
refill.
9. Connect battery earth lead.
M86 5709
