L322 Range Rover Service Procedures
ENGINE - V8
12-2-20 REPAIRS
Variable camshaft unit - variable
camshaft control (VCC) - LH
$% 12.30.62
Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.
GENERAL INFORMATION, Electrical
Remove
1. Position vehicle on lift.
2. Disconnect battery earth lead.
3. Drain cooling system.
ADJUSTMENTS, Coolant - drain, flush &
refill.
4. Remove fan cowl.
5. Remove LH camshaft cover.
Engine - V8, REPAIRS, Gasket -
6. Remove RH camshaft cover.
Engine - V8, REPAIRS, Gasket -
7. Remove 8 spark plugs.

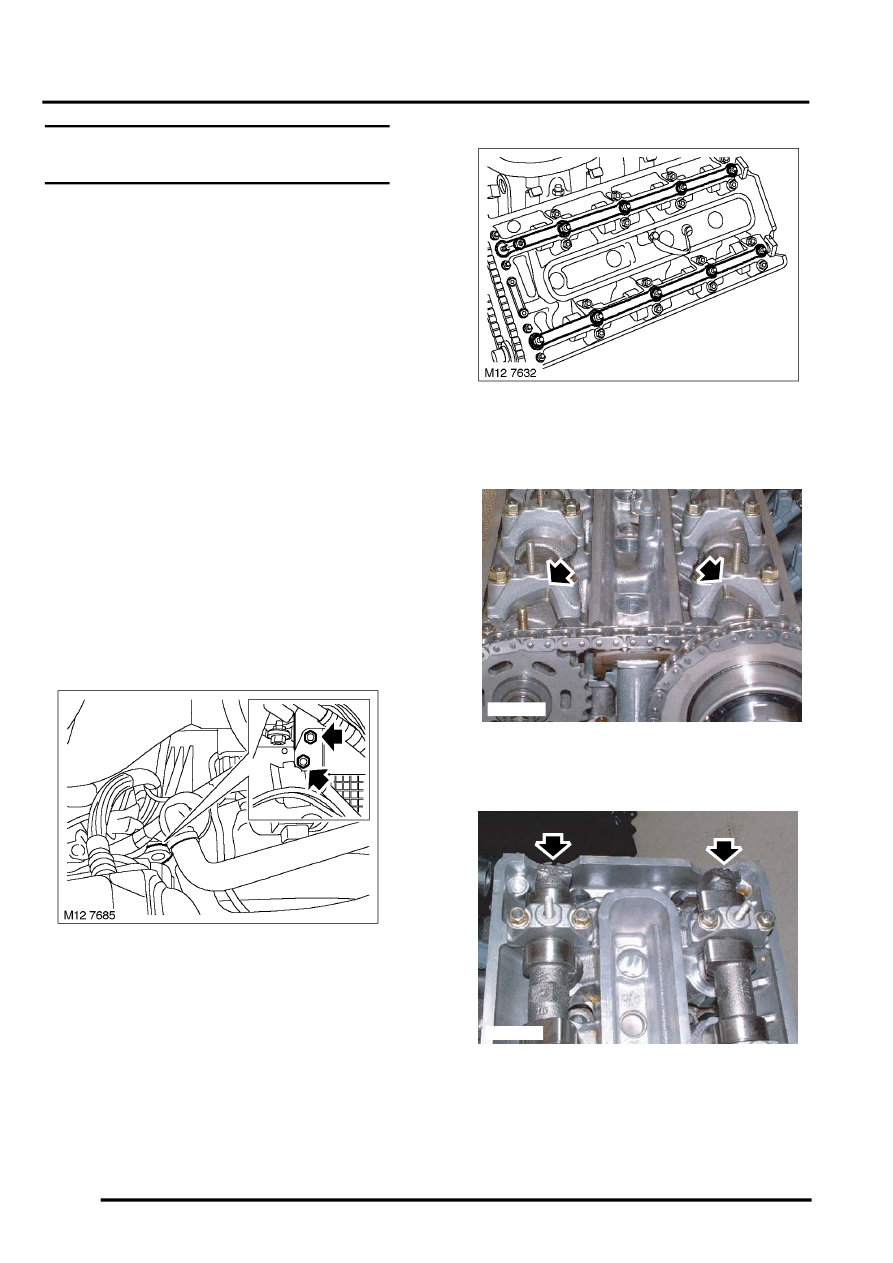

8. Remove 2 bolts securing engine lifting eye to
rear of RH cylinder head and remove engine
lifting eye.
9. Remove 20 nuts securing 4 camshaft oil lines to
LH and RH cylinder heads and remove
camshaft oil lines.
10. Rotate engine crankshaft pulley until cylinder 1
camshaft lobes are at TDC firing position.
11. The rear of the camshafts may appear twisted
and out of alignment when cylinder 1 is in the
TDC firing position.
NOTE: The twisting and apparent misalignment
of the camshafts does not indicate incorrect
engine timing.
M12 7633
M12 7637
