Range Rover V8 Engine Repair - Oil Pick Up Strainer Replacement
ENGINE - V8
REPAIRS 12-2-55
Refit
1. Clean dipstick tube and mating faces in engine
oil sump.
2. Fit new 'O' ring to oil sump and position dipstick
tube and washer to oil sump.
3. Fit clamp securing dipstick tube to oil sump and
tighten nut.
4. Fit and tighten 2 nuts securing dipstick tube
bracket to camshaft cover.
5. Fit dipstick.
6. Check engine oil level, top-up if necessary.
7. Connect battery earth lead.
Strainer - oil pick up
$% 12.60.20
Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.
GENERAL INFORMATION, Electrical
Remove
1. Position vehicle on lift.
2. Disconnect battery earth lead.
3. Remove lower oil sump.
Engine - V8, REPAIRS, Gasket -

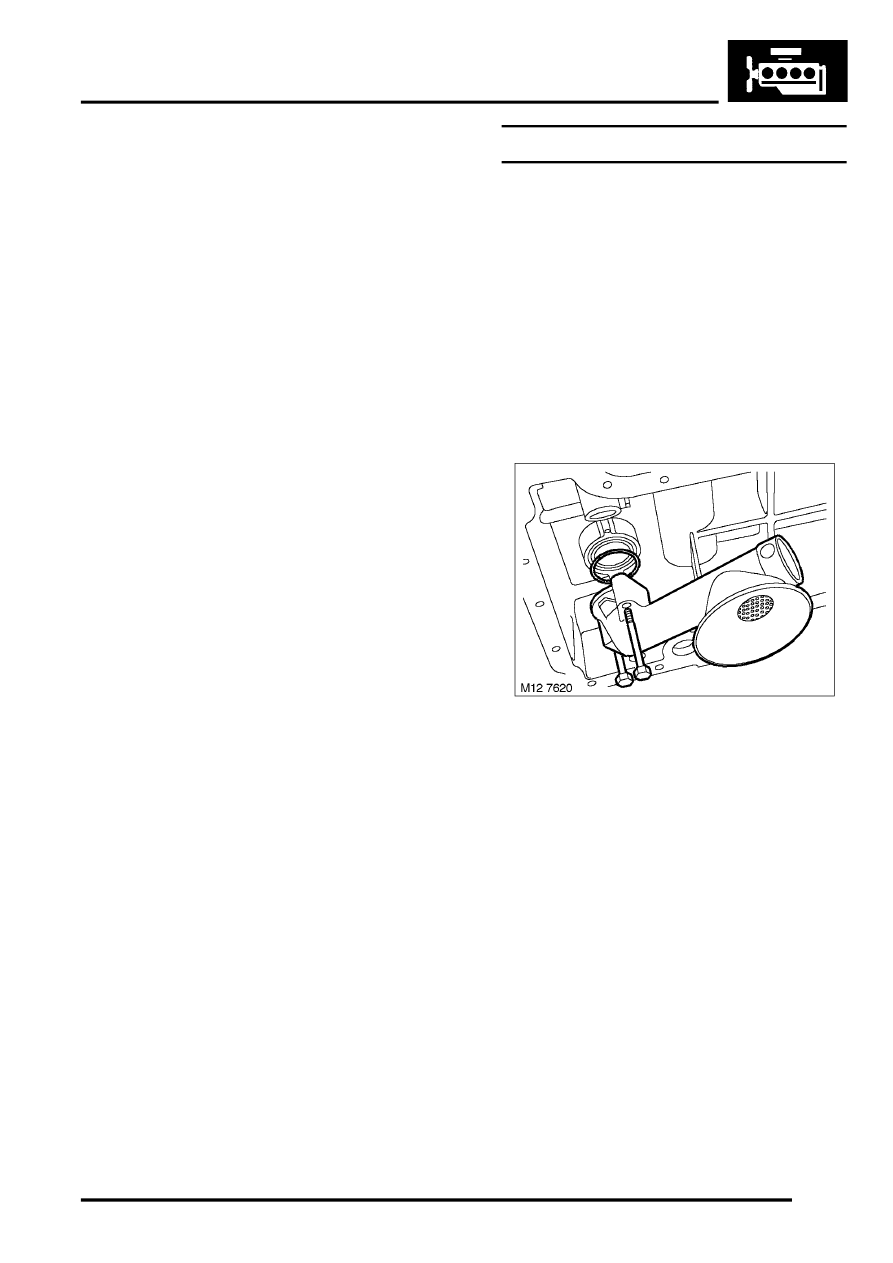

4. Remove 2 bolts securing oil pick-up strainer to
oil pump, remove strainer and discard 'O' ring.
Refit
1. Clean oil pick up strainer and mating faces.
2. Fit new 'O' ring to oil pump groove location,
position oil pick-up strainer to oil pump.
3. Fit and tighten 2 bolts securing oil pick-up
strainer to oil pump.
4. Fit lower oil sump.
Engine - V8, REPAIRS, Gasket -
5. Connect battery earth lead.
