L322 Range Rover Service Procedures
ENGINE - V8
12-2-32 REPAIRS
Engine & ancillaries - remove for access
& refit
$% 12.41.01.99
Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.
GENERAL INFORMATION, Electrical
If fitting a replacement engine, a new dowel must be
fitted, in the correct position, into the crankshaft boss.
The procedure for this is detailed at the start of the
'refit' section.
Remove
1. Release bonnet support stays, raise and
secure bonnet in upright position.
2. Disconnect battery earth lead.
3. Remove air intake plenum.
4. Depressurise fuel system.
ADJUSTMENT, Fuel system - depressurise.
5. Recover refrigerant from A/C system.
RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.
6. Remove MAF/IAT sensor.
V8, REPAIRS, Sensor - combined mass air
flow (MAFS) & intake air temperature (IAT).
7. Raise front of vehicle and support on stands.
WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.
8. Drain cooling system.
ADJUSTMENTS, Coolant - drain, flush &
refill.
9. Remove viscous coupling.

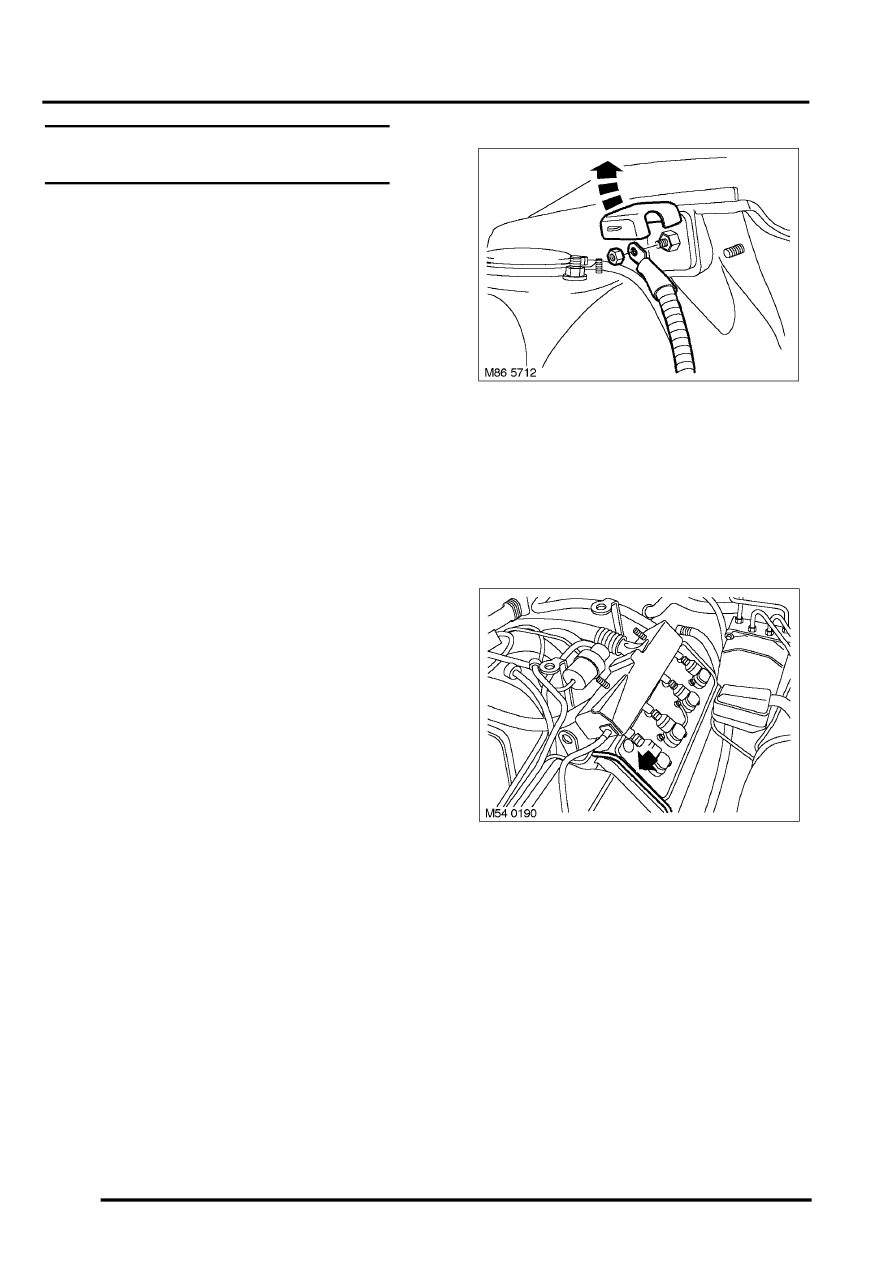

10. Release cover, remove nut and disconnect
battery positive lead from stud.
11. Remove RH ignition coil cover.
V8, REPAIRS, Cover - Ignition coils - RH.
12. Remove LH ignition coil cover.
V8, REPAIRS, Cover - Ignition coils - LH.
13. Position differential breather pipe clear of
engine.
