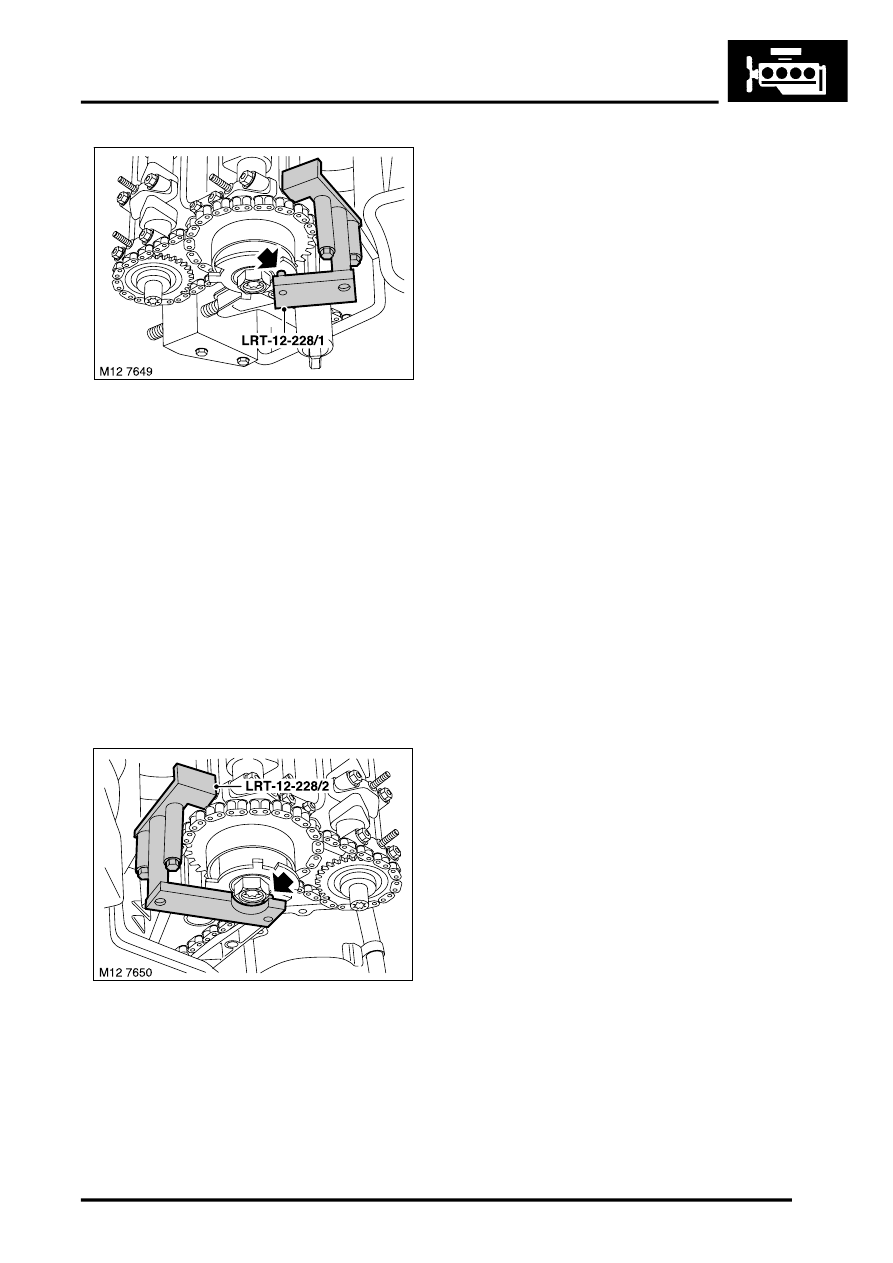

19. Position LRT-12-228/1 locating dowel to RH
CMP sensor ring, fit 2 bolts securing tool to RH
cylinder head and tighten.
NOTE: To ensure correct CMP sensor ring
adjustment, make sure the tool is aligned flush
with the cylinder head and lower timing gear
cover before tightening the tool securing bolts.
20. Tighten nut securing CMP sensor ring to 40 Nm
(30 lbf.ft) and remove LRT-12-228/1 from RH
cylinder head.
NOTE: Thread is left handed.
21. Fit LH CMP sensor ring, fit and hand tighten
securing nut.
NOTE: Thread is left handed.
22. Position LRT-12-228/2 locating dowel to LH
CMP sensor ring, fit 2 bolts securing tool to RH
cylinder head and tighten.
NOTE: To ensure correct CMP sensor ring
adjustment, make sure the tool is aligned flush
with the cylinder head and lower timing gear
cover before tightening the tool securing bolts.
23. Tighten nut securing CMP sensor ring to 40 Nm
(30 lbf.ft) and remove LRT-12-228/2 from LH
cylinder head.
NOTE: Thread is left handed.
24. Remove LRT-12-223/5, LRT-12-223/6, LRT-
12-223/2 and LRT-12-223/1 from RH cylinder
head camshafts.
25. Remove LRT-12-223/6, LRT-12-223/5, LRT-
12-223/3 and LRT-12-223/4 from LH cylinder
head camshafts.
26. Loosen LRT-12-222, remove 2 bolts securing
LRT-12-221 to RH cylinder head and remove
LRT-12-221.
27. Fit RH upper timing gear cover.
28. Fit LH upper timing gear cover.
29. Remove LRT-12-227 from timing tool access
hole.
30. Fit 4 camshaft oil lines to LH and RH cylinder
heads, fit and tighten 20 securing bolts.
31. Fit engine lifting eye to rear of RH cylinder head
and fit 2 bolts securing engine lifting eye and
tighten.
32. Fit and tighten 8 spark plugs to 31 Nm (23
lbf.ft).
33. Fit RH camshaft cover.
Engine - V8, REPAIRS, Gasket -
34. Fit LH camshaft cover.
Engine - V8, REPAIRS, Gasket -
35. Fit fan cowl.
36. Fill cooling system.
ADJUSTMENTS, Coolant - drain, flush &
refill.
37. Connect battery earth lead.
