Engine & ancillaries removal & refit for Range Rover V8
ENGINE - V8
REPAIRS 12-2-33

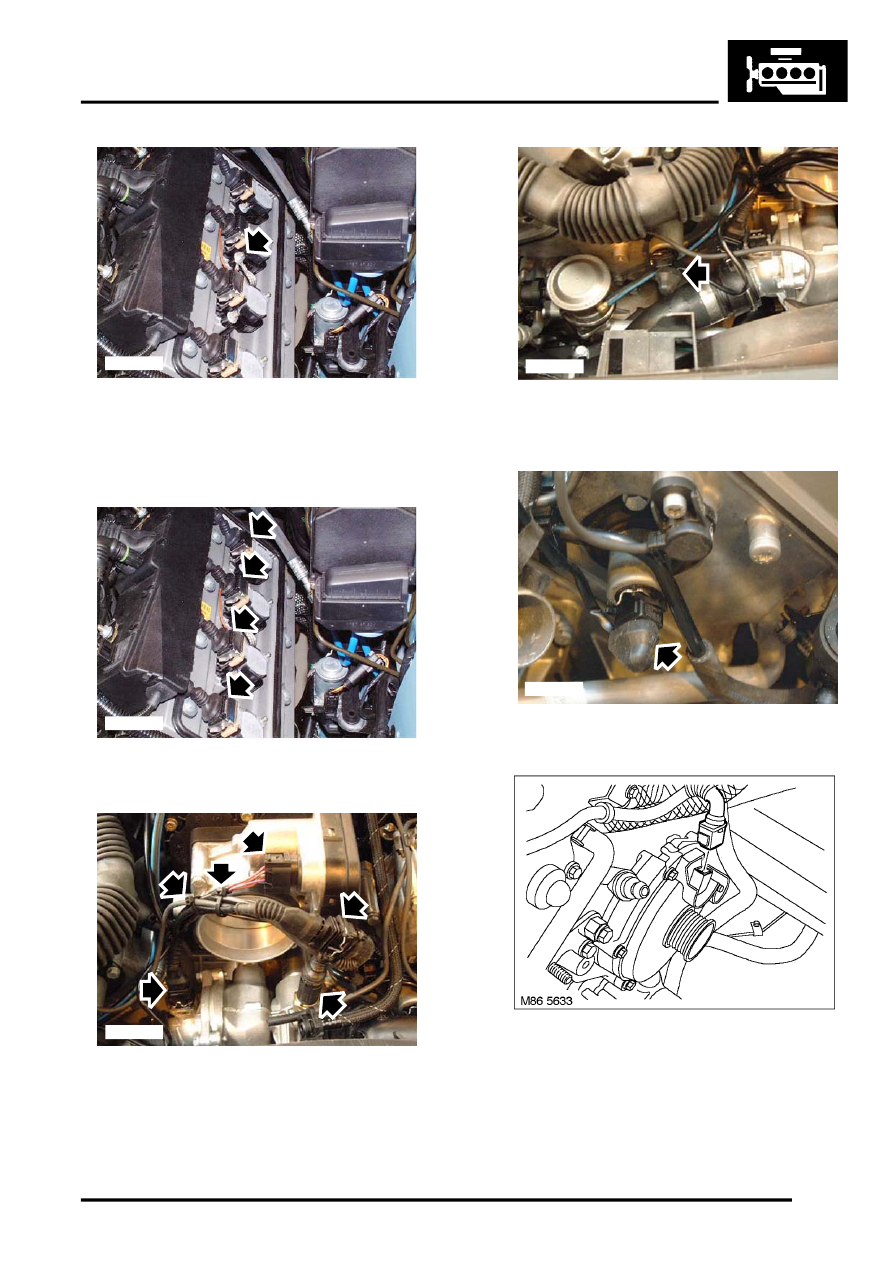

14. Remove nut and disconnect earth lead from LH
camshaft cover.
15. Remove nut and disconnect earth lead from RH
camshaft cover.
16. Disconnect multiplugs from ignition coils.
17. Disconnect multiplugs from throttle body,
thermostat heater, CMP sensor and ECT
sensor.
18. Cut 2 cable ties securing engine harness at
throttle body and release harness.
19. Disconnect multiplug from RH VCC solenoid.
20. Release VCC multiplug harness from clip.
21. Disconnect multiplug from LH VCC solenoid.
22. Disconnect multiplug from alternator.
23. Release alternator harness from 4 clips.
M86 5761
M86 5697
M86 5692
M86 5693
M86 5709
